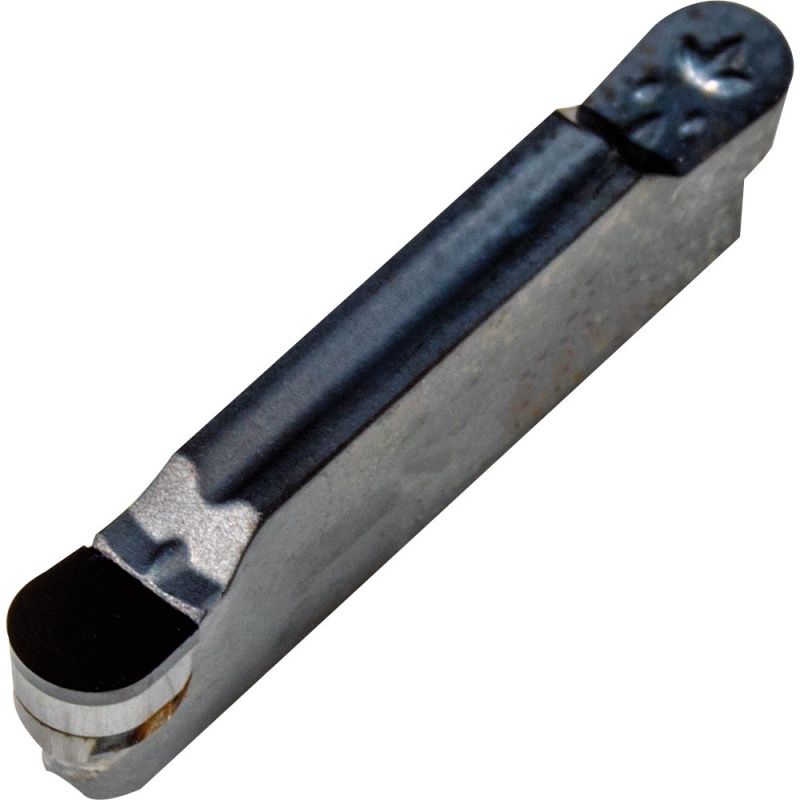

MRMN 400 PCD1300 Diamond Copy Turning Insert for Aluminium Alloys with less than 12% Si content

MRMN 400 PCD1300 Diamond Copy Turning Insert for Aluminium Alloys with less than 12% Si content
Zoom  Zoom
Our Price:  £26.00
List Price:  £39.00
Saving Of:  £13.00 (33%)
(Exc. 20% VAT)(£31.20 Inc. VAT)

Model:  MRMN400PCD1300
Brand:  Uni-tip Carbide

Shipped Weight:  6g

Availability:

Only 17 left in stock - order soon

Only 17 left in stock - order soon

Uni-tip Carbide

Carbide Inserts with CVD & PVD Coating by Uni-tip


MRMN 400 PCD1300 2mm Wide, 1mm Radius Copy Turning and Radius forming Diamond Grooving Insert for Aluminium Alloys with less than 12% Si content.

4mm Wide, 2mm Radius.

PCD tipped carbide insert for radius forming and copy turning also suitable for use on Composite Plastics, Graphite and Carbon Materials, Copper, Bronze, Lead Alloys, Brass, Zinc Alloys.

Dimensions for MRMN 400 PCD1300 (mm)
Groove Width Radius Length Heigth from Base to Cutting Edge
4.0 2.0

21

4.8
General Cutting Parameters
Material Cutting Speed m/min Feed mm/rev Width of Cut
Aluminium Alloys Si<5% 500-3000 0.05-0.20 4.0
Aluminium Alloys Si<12% 400-1500 0.05-0.15 4.0
Copper, Bronze, Lead Alloys 200-1000 0.05-0.20 4.0
Brass, Magnesium, Zinc Alloys 200-2000 0.05-0.20 4.0
Composite Plastics 1000-2000 0.05-0.20 4.0
Graphite, Carbon, Rubber 100-500 0.05-0.20 4.0
