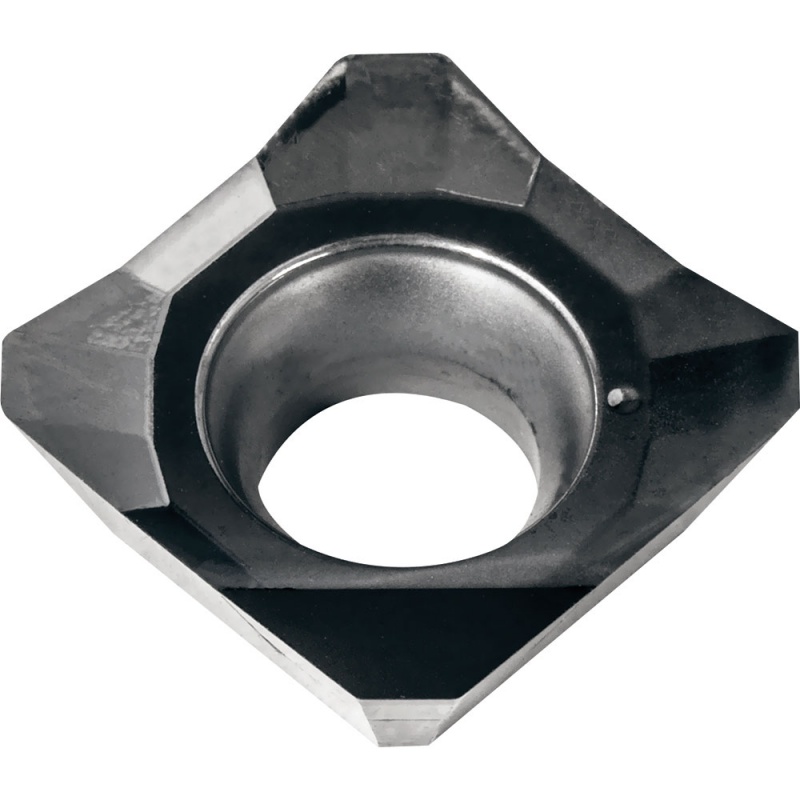

SEHT 1204 AFFN PCD1300 Diamond Milling Insert for Aluminium Alloys with less than 12% Si content

SEHT 1204 AFFN PCD1300 Diamond Milling Insert for Aluminium Alloys with less than 12% Si content
Zoom  Zoom
Our Price:  £26.00
List Price:  £39.00
Saving Of:  £13.00 (33%)
(Exc. 20% VAT)(£31.20 Inc. VAT)

Model:  SEHT1204AFFNPCD1300
Brand:  Uni-tip Carbide

Shipped Weight:  10g

Availability:

Only 30 left in stock - order soon

Only 30 left in stock - order soon

Uni-tip Carbide

Carbide Inserts with CVD & PVD Coating by Uni-tip


SEHT 1204 AFFN PCD1300 Diamond Milling Insert for Aluminium Alloys with less than 12% Si content.

PCD tipped carbide insert will fit the same cutter body for SEHW and SEHX inserts for 45° face milling.

Dimensions for SEHT 1204 AFFN PCD 1300 (mm)
Overall Length of Insert Inscribed Circle or Width Thickness Hole Dia Corner Facet Side Clearance
12.7 12.7

4.76

5.5 45° 20°
General Cutting Parameters
Material Cutting Speed m/min Feed mm/tooth Depth of Cut
Aluminium Alloys Si<5% 500-3000 0.05-0.25 up to 2mm
Aluminium Alloys Si<12% 400-1500 0.05-0.15 up to 2mm
Copper, Bronze, Lead Alloys 200-1000 0.05-0.25 up to 2mm
Brass, Magnesium, Zinc Alloys 200-2000 0.05-0.25 up to 2mm
Composite Plastics 1000-2000 0.05-0.25 up to 2mm
Graphite, Carbon, Rubber 100-500 0.05-0.25 up to 2mm
