SNMM 120408 PCD 1300 Diamond Turning Insert for Aluminium Alloys with less than 12% Si content

SNMM 120408 PCD 1300 Diamond Turning Insert for Aluminium Alloys with less than 12% Si content
Zoom  Zoom
Our Price:  £22.00
List Price:  £33.00
Saving Of:  £11.00 (33%)
(Exc. 20% VAT)(£26.40 Inc. VAT)

Model:  SNMM120408PCD1300
Brand:  APT Carbide

Shipped Weight:  14 g

Availability:

Only 18 left in stock - order soon

Only 18 left in stock - order soon

APT Carbide

Carbide Inserts APT Brand utilising modern Base Grades, MT-CVD & PVD Coatings and proven Chip Geometries

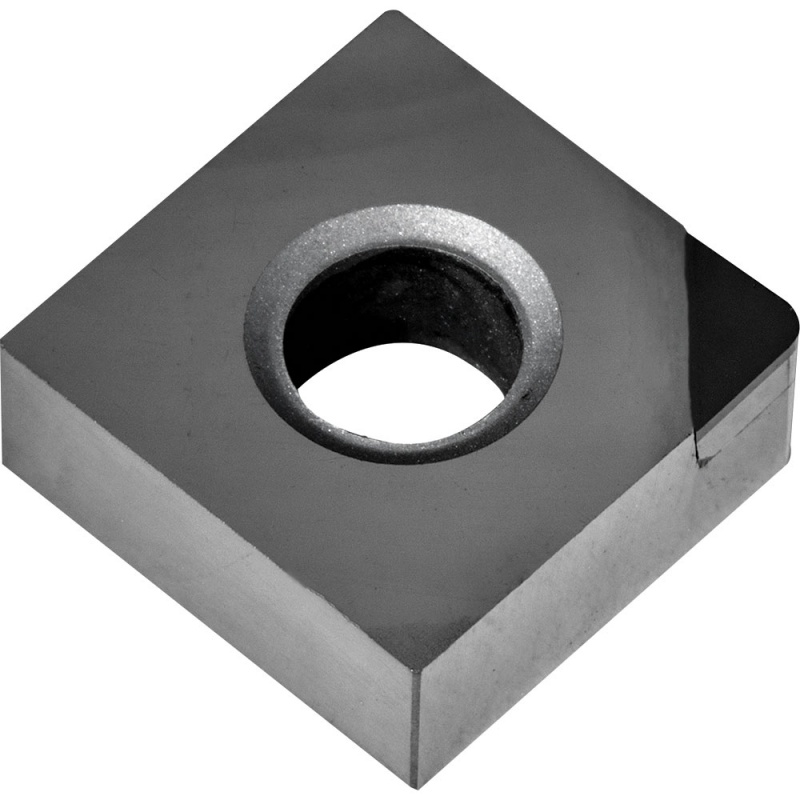

PCD Diamond Turning Insert in Grade PCD 1300 style SNMM 120408 PCD for Machining Aluminium with less than 12% Silicon content also suitable for Graphite, Carbon.
Plastic Composites, Rubber, Wood, Copper and Bronze Alloys, Zinc.

Dimensions for SNMM 120408 PCD 1300 (mm)
Edge Length Inscribed Circle or Height Thickness Hole Dia Corner Radius Side Clearance

12.7

12.7 4.76 5.16 0.8
General Cutting Parameters
Material Cutting Speed m/min Feed mm/rev Depth of Cut
Aluminium Alloys Si<5% 500-3000 0.1-0.5 up to 3mm
Aluminium Alloys Si<12% 400-1500 0.1-0.5 up to 3mm
Copper, Bronze, Lead Alloys 200-1000 0.1-0.3 up to 3mm
Brass, Magnesium, Zinc Alloys 200-2000 0.1-0.3 up to 3mm
Composite Plastics 200-800 0.1-0.3 up to 2mm
Wood 500-3000 0.1-0.5 up to 3mm
Graphite, Carbon, Rubber 100-500 0.1-0.3 up to 3mm
