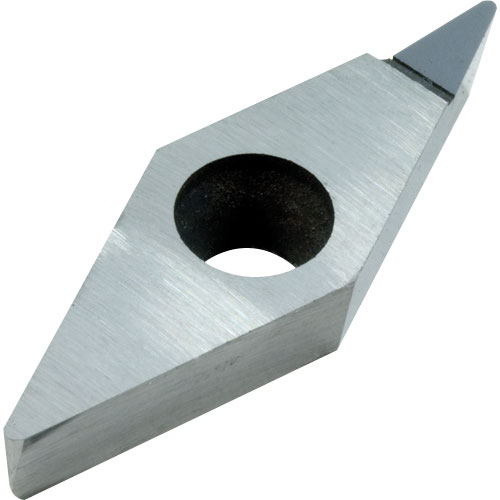

VCMT 160408 PCD 1500 Diamond Turning Insert for Aluminium Alloys with >12% Si content

Our Price:	£22.00
List Price:	~~£33.00~~
Saving Of:	£11.00 (33%)

(Exc. 20% VAT)(£26.40 Inc. VAT)

Model: VCMT160408PCD1500
Brand: APT Carbide

Shipped Weight: 20 g

Availability:

Only 3 left in stock - order soon

APT Carbide

Carbide Inserts APT Brand utilising modern Base Grades, MT-CVD & PVD Coatings and proven Chip Geometries

PCD Diamond Turning Inserts in Grade PD1500 style VCMT 160408 PCD for Machining Aluminium with more than 12% Silicon content also for highly abrasive Composite Plastics and Cemented Tungsten Carbide.

Dimensions for VCMT 160408 PCD 1500 (mm)

Edge Length	Inscribed Circle or Width	Thickness	Hole Dia	Corner Radius	Side Clearance
16.6	9.525	4.76	4.4	0.8	7°

General Cutting Parameters

Material	Cutting Speed m/min	Feed mm/rev	Depth of Cut
Aluminium Alloys Si<12%	400-1500	0.1-0.5	up to 3mm
Aluminium Alloys Si<18%	300-800	0.1-0.3	up to 3mm
Composite Plastics	200-800	0.1-0.3	up to 2mm
Metal Matrix Composite	10-30	0.1-0.3	up to 1mm
Tungsten Carbide	10-30	0.1-0.15	up to 1mm
