3.175mm (1/8") Diameter Single Flute Carbide Router Slot Drill for MDF Wood 15mm Flute Length

3.175mm (1/8'') Diameter Single Flute Carbide Router Slot Drill for MDF Wood 15mm Flute Length
Zoom  Zoom
Our Price:  £3.40
List Price:  £5.10
Saving Of:  £1.70 (33%)
(Exc. 20% VAT)(£4.08 Inc. VAT)

Model:  EMD1SL-1-81-81538
Brand:  APT Carbide End Mills

Shipped Weight:  20 g

Availability:

In stock, immediate despatch

In stock, immediate despatch

APT Carbide End Mills

Carbide End Mills APT Brand

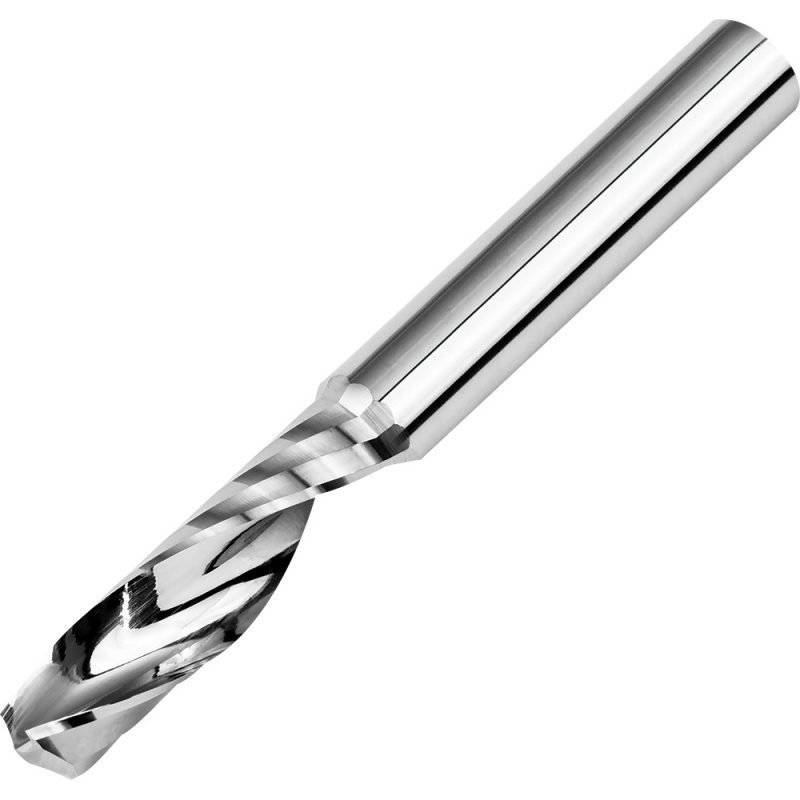

3.175mm (1/8") Diameter Single Flute Carbide Router - Slot Drill for MDF, Wood, Hardwood, Softwood, Ply Board etc.

Flute Length 15mm, Overall Length 38mm, Shank Diameter 3.175mm (1/8").

Made from wear resistant Uncoated Carbide for increased tool life, can be used on Plastic Acrylic PVC Foam Inserts and Non-ferrous Metals when a cutter dedicated for these materials is not available.

When possible choose cutter with the shortest flute length and least overhang.

Dimensions for EMD1SL-1-81-81538 single flute router cutter
Cutting DiameterFlute LengthOverall LengthShank Diameter
3.175mm (1/8")15mm38mm3.175mm - 1/8"
Speeds and Feeds for router cutter, based on a max depth of 1 x diameter with high accuracy spindle and collets with optimum stability of spindle and workpiece holding, reduce feed rate for suboptimal conditions.
When cutting more than 1 x diameter reduce feed rate. For guidance only if vibration is produced try lowering the feed rate if not successful try raising feed very slowly, if no vibration is present increased feed rate may be possible.
HardwoodLaminate
RPM 18000 Feed 1800 mm/minRPM 18000 Feed 1800 mm/min
Particle Board MDFPlywoodSolid Surface
RPM 18000 Feed 2500 mm/minRPM 18000 Feed 2300 mm/minRPM 18000 Feed 1300 mm/min
