SDIHH-00-SH020-50N Series 0 Spade Drill Holder 13-17.5mm Diameter Max 114.3mm Deep 7xD Extended Length

SDIHH-00-SH020-50N Series 0 Spade Drill Holder 13-17.5mm Diameter Max 114.3mm Deep 7xD Extended Length
Zoom  Zoom
Our Price:  £96.00(Exc. 20% VAT)(£115.20 Inc. VAT)

Model:  SDIHH-00-SH020-50N
Brand:  APT Carbide

Shipped Weight:  380 g

Availability:

28 in stock, no more available

28 in stock, no more available

APT Carbide

Carbide Inserts APT Brand utilising modern Base Grades, MT-CVD & PVD Coatings and proven Chip Geometries

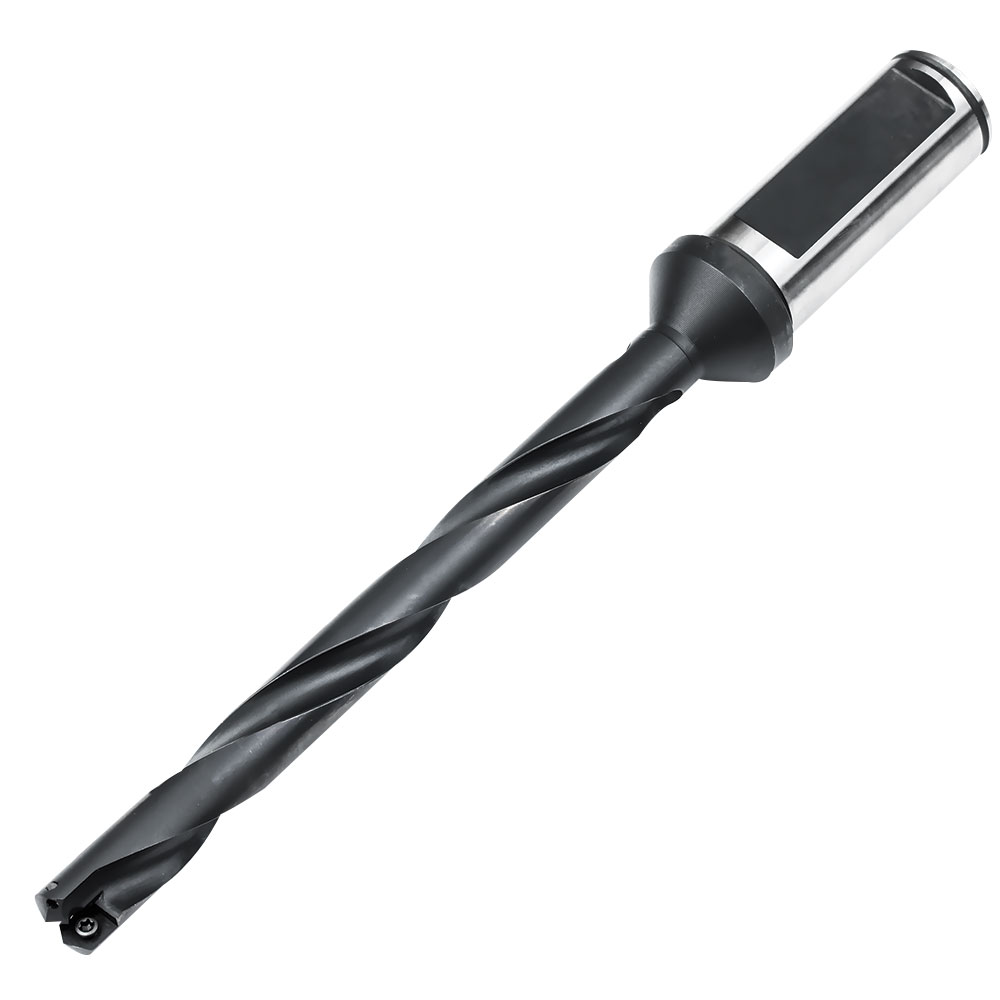

SDIHH-00-SH020-50N Series 0 Spade Drill Holder 7xD Extended Length.

For use with series 0 inserts 13mm to 17.5mm Diameter with a Maximum Depth of 114.3mm.

Helical Flute with Weldon Shank and Through Coolant.

Suitable for Conventional and CNC machining.

Inserts are self centering drill from flat work surface without pre-drilled hole.

Cutting data is available on the individual insert page as this is an extended length drill body use the medium to lower values of the cutting data as long as the machine is in good condition and the conditions are stable otherwise consider reducing the speed by 20% and the feed by 10%.

Dimensions for SDIHH-00-SH020-50N
Insert Series Diameter (A) Max Drill Depth (L1) Body Length (L2) Ref. Length (L3)
0 13-17.5mm 114.3mm 142.9mm 145.7mm
Overall Length (L) Shank Length (L4) Shank Diameter (D1) Pipe Tap Rear (G)
192.9mm 50mm 20mm 1/8"

"
