SDIHS-00-SH020-10N Series 0 Spade Drill Holder 13-17.5mm Diameter Max 22.2mm Deep 2xD Stub Length

SDIHS-00-SH020-10N Series 0 Spade Drill Holder 13-17.5mm Diameter Max 22.2mm Deep 2xD Stub Length
Zoom  Zoom
Our Price:  £70.00(Exc. 20% VAT)(£84.00 Inc. VAT)

Model:  SDIHS-00-SH020-10N
Brand:  APT Carbide

Shipped Weight:  300 g

Availability:

23 in stock, no more available

23 in stock, no more available

APT Carbide

Carbide Inserts APT Brand utilising modern Base Grades, MT-CVD & PVD Coatings and proven Chip Geometries

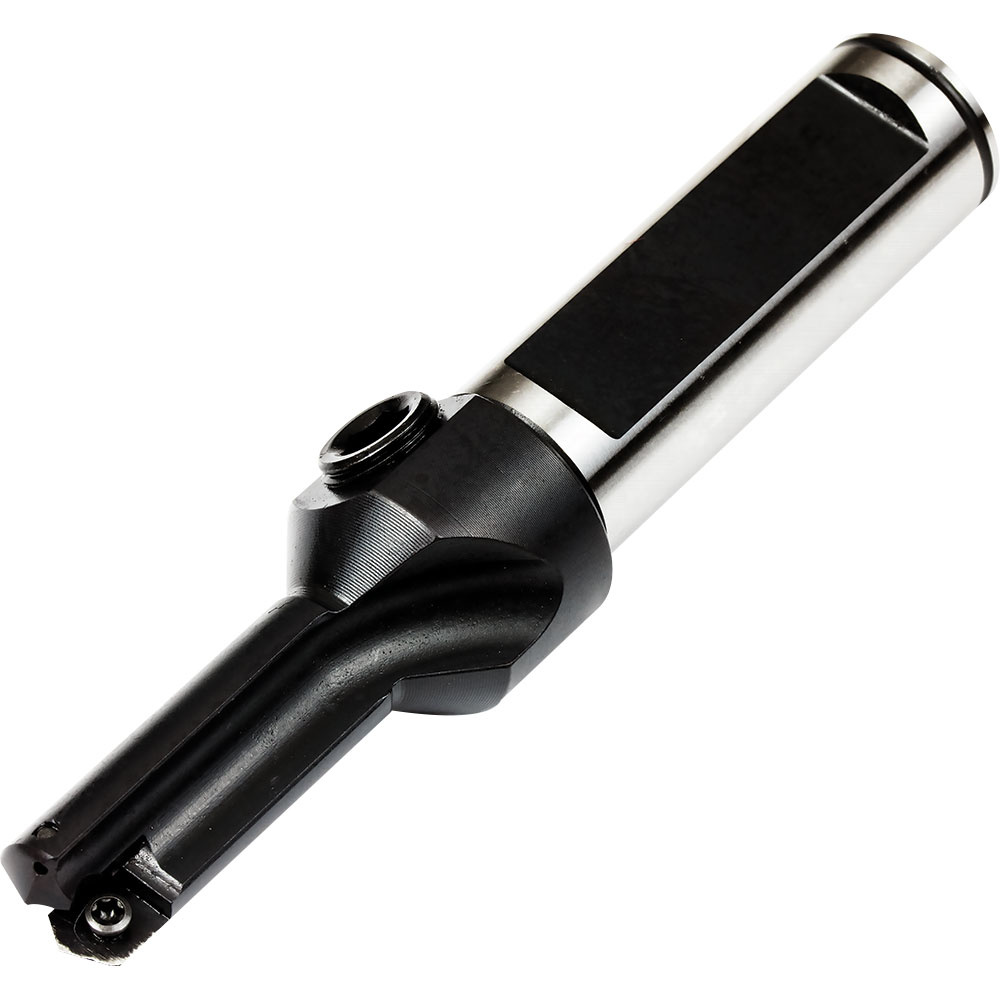

SDIHS-00-SH020-10N Series 0 Spade Drill Holder 2xD Stub Length.

For use with series 0 inserts 13mm to 17.5mm Diameter with a Maximum Depth of 22.2mm.

Straight Flute with Weldon Shank and Through Coolant.

Suitable for Conventional and CNC machining.

Inserts are self centering drill from flat work surface without pre-drilled hole.

Cutting data is available on the individual insert page as this is a stub length drill body it should be possible to use the upper limits of the cutting data as long as the machine is in good condition and the conditions are stable otherwise consider reducing the speed by 20% and the feed by 10%.

Dimensions for SDIHS-00-SH020-10N
Insert Series Diameter (A) Max Drill Depth (L1) Body Length (L2) Ref. Length (L3)
0 13-17.5mm 22.2mm 47.6mm 50.4mm
Overall Length (L) Shank Length (L4) Shank Diameter (D1) Pipe Tap Rear (G) Pipe Tap Side (H)
97.6mm 50mm 20mm 1/8" 1/8"

"
