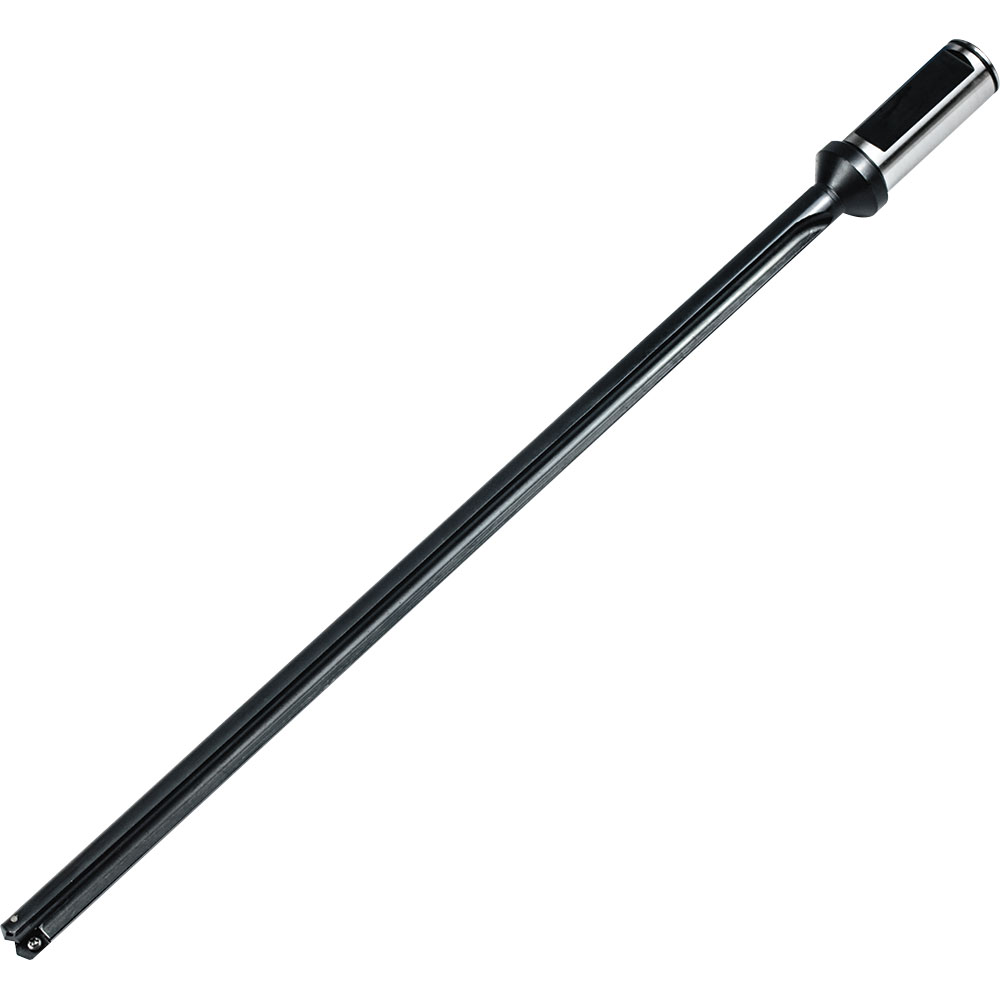

SDIHS-00-SH020-70N Series 0 Spade Drill Holder 13-17.5mm Diameter Max 295mm Deep 20xD Extra Length Super Long

Zoom

Our Price: £151.00(Exc. 20% VAT)(£181.20 Inc. VAT)

Model: SDIHS-00-SH020-70N
Brand: APT Carbide

Shipped Weight: 700 g

Availability:

29 in stock, no more available

APT Carbide

Carbide Inserts APT Brand utilising modern Base Grades, MT-CVD & PVD Coatings and proven Chip Geometries

SDIHS-00-SH020-70N Series 0 Spade Drill Holder 20xD Extra Length Super Long.

For use with series 0 inserts 13mm to 17.5mm Diameter with a Maximum Depth of 295mm.

Straight Flute with Weldon Shank and Through Coolant.

Suitable for Conventional and CNC machining.

Inserts are self centering drill from flat work surface without pre-drilled hole.

Cutting data is available on the individual insert page as this is an extra length drill body use the lower limits of the cutting data as long as the machine is in good condition and the conditions are stable otherwise consider reducing the speed by 20% and the feed by 10%.

Dimensions for SDIHS-00-SH020-70N

Insert Series	Diameter (A)	Max Drill Depth (L1)	Body Length (L2)	Ref. Length (L3)
0	13-17.5mm	295mm	323.9mm	326.7mm

Overall Length (L)	Shank Length (L4)	Shank Diameter (D1)	Pipe Tap Rear (G)
373.9mm	50mm	20mm	1/8"
