Home > Spade Drills & Inserts > Spade Drill Insert Holders Series 1, 18.0mm - 24.0mm
Model: SDIHS-10-SH025-20NBrand: APT Carbide
Shipped Weight: 530 g
19 in stock, no more available
Carbide Inserts APT Brand utilising modern Base Grades, MT-CVD & PVD Coatings and proven Chip Geometries

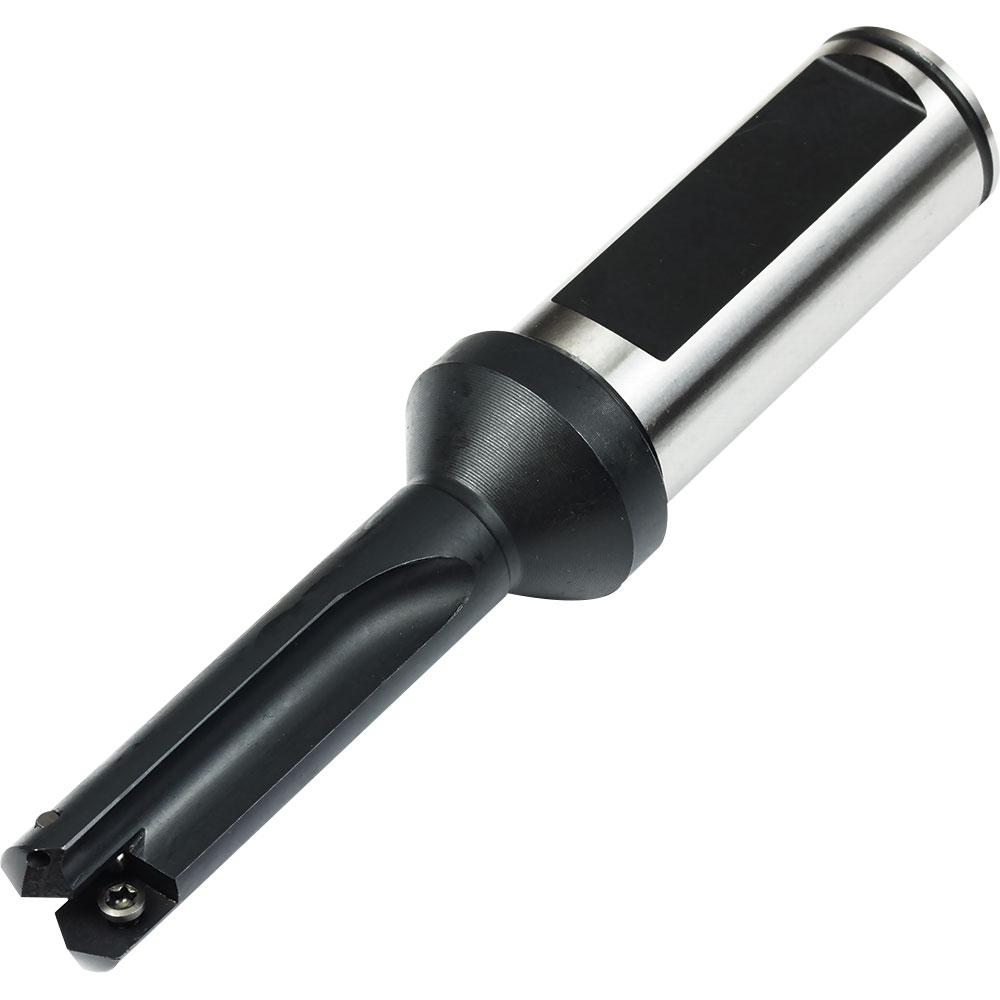

SDIHS-10-SH025-20N Series 1 Spade Drill Holder 3xD Short Length.
For use with series 1 inserts 17.86mm to 24mm Diameter with a Maximum Depth of 66.7mm.
Straight Flute with Weldon Shank and Through Coolant.
Suitable for Conventional and CNC machining.
Inserts are self centering drill from flat work surface without pre-drilled hole.
Cutting data is available on the individual insert page as this is a short length drill body it should be possible to use the upper limits of the cutting data as long as the machine is in good condition and the conditions are stable otherwise consider reducing the speed by 20% and the feed by 10%.
5509 Torx 9 Flag Key£5.70 £5.13
TX9-1 Torx 9 Screw for Series 1 Spade Drill Inserts£5.00 £4.50
Be the first to Write a Review for this item!
