Model: SDIHH-30-SH040-30NBrand: APT Carbide
Shipped Weight: 2.30 kg
10 in stock, no more available
Carbide Inserts APT Brand utilising modern Base Grades, MT-CVD & PVD Coatings and proven Chip Geometries

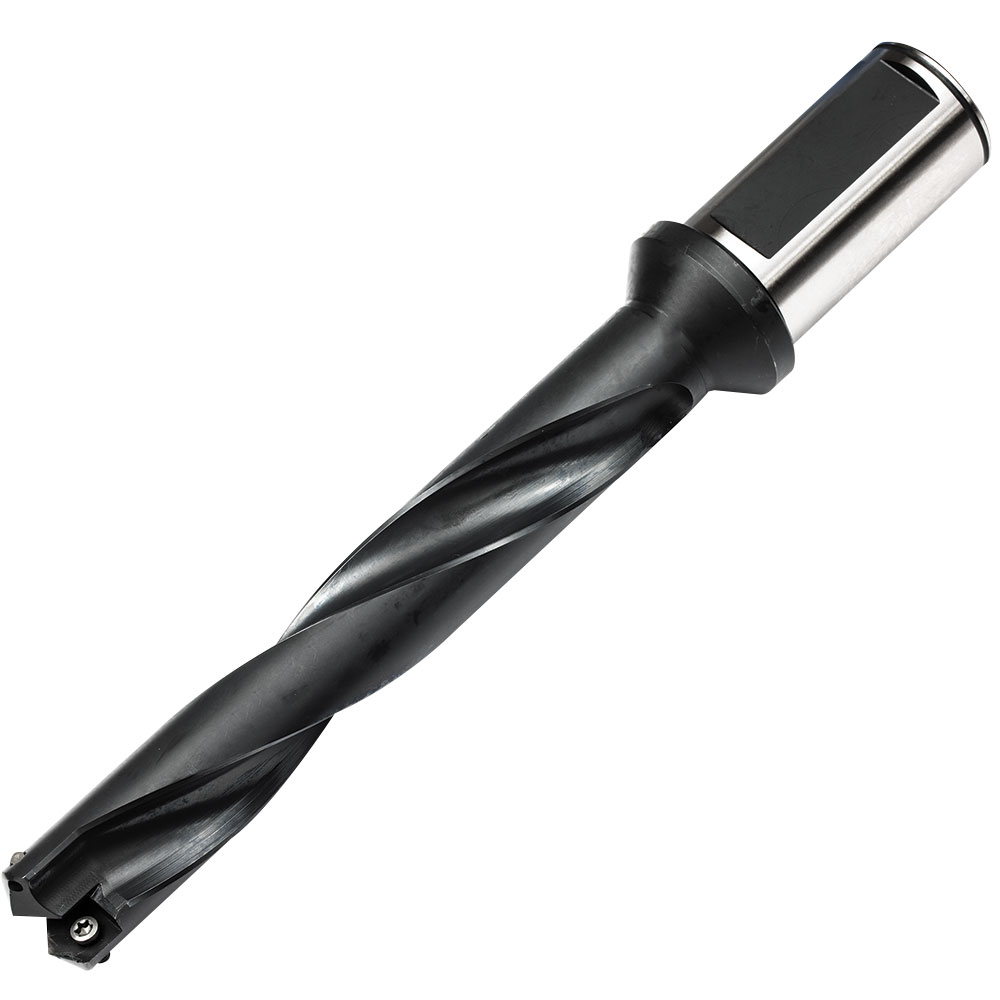

SDIHH-30-SH040-30N Series 3 Spade Drill Holder 5xD Intermediate Length.
For use with series 3 inserts 35.72mm to 47.63mm Diameter with a Maximum Depth of 165.1mm.
Helical Flute with Weldon Shank and Through Coolant.
Suitable for Conventional and CNC machining.
Inserts are self centering drill from flat work surface without pre-drilled hole.
Cutting data is available on the individual insert page as this is an intermediate length drill body it should be possible to use the medium values of the cutting data as long as the machine is in good condition and the conditions are stable otherwise consider reducing the speed by 20% and the feed by 10%.
5520 Torx 20 Flag Key£7.24 £6.52
TX20-3-4 Torx 20 Screw for Series 3 and 4 Spade Drill Inserts£5.00 £4.50
