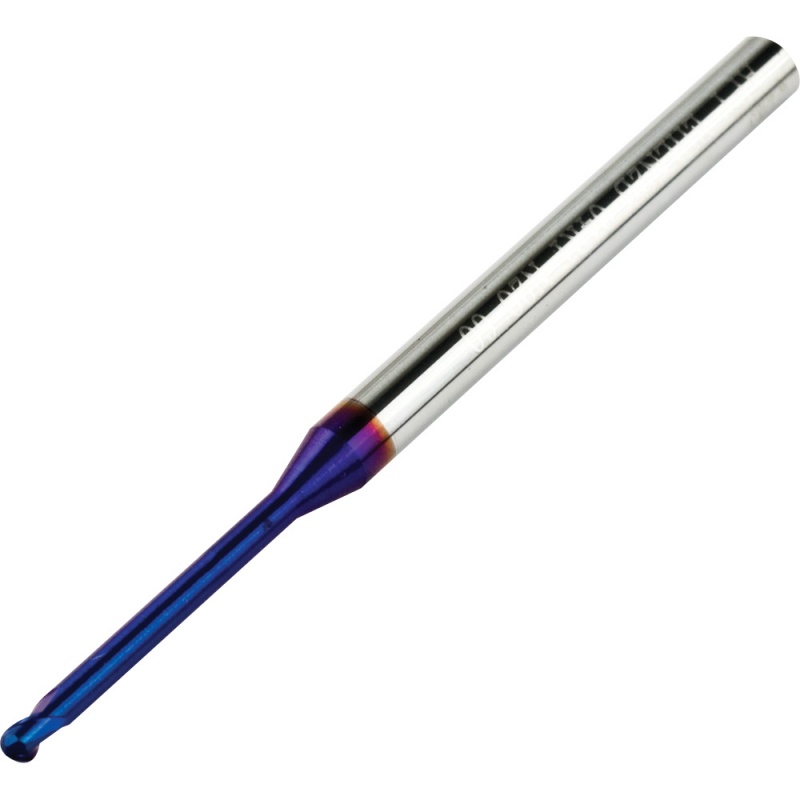

Long Neck Ball Nose End Mill 2mm Dia 20mm Neck Length 60mm Long 68HRC

Long Neck Ball Nose End Mill 2mm Dia 20mm Neck Length 60mm Long 68HRC
Zoom  Zoom
Our Price:  £13.00
List Price:  £19.50
Saving Of:  £6.50 (33%)
(Exc. 20% VAT)(£15.60 Inc. VAT)

Model:  EHLN2B-04R1-N20-60
Brand:  APT Carbide End Mills

Shipped Weight:  28 g


In stock, immediate despatch

In stock, immediate despatch

APT Carbide End Mills

Carbide End Mills APT Brand

Long Neck Ball Nose Carbide End Mill for Rib Processing 2mm Diameter 20mm Neck Length 4mm Plain Shank 60mm Long 1.6mm Flute Length 2 Flutes TiAlN F-NaNo Blue Coated.

Suitable for high speed dry cutting.

For General Use on High Hardness Materials up to 65-68HRC, performs well on Heat Resistant and Steel Alloys 30-45HRC, Pre-hardened, Hardened Steel 45-55HRC, High Hardened Steel 55-68HRC. Also suitable for Copper.

Dimensions for EHLN2B-04R1-N20-60 (mm)
Diameter Radius Shank Dia Flute Length Neck Length Length
2.0 1.0 4 1.6 20 60
Recommended Speeds and Feeds for Slot Milling Ap = Depth of Cut in mm.
Heat Resistant and Steel Alloys 30-45HRC Pre Hardened, Hardened Steel 45-55HRC High Hardened Steel 55-68HRC Copper
RPM 9260 Feed 655 mm/min Ap 0.080mm RPM 8030 Feed 475 mm/min Ap 0.066mm RPM 8030 Feed 435 mm/min Ap 0.060mm RPM 16860 Feed 1480 mm/min Ap 0.115mm
