10mm Diameter End Mill 4 Flute HSS High Speed Steel 8% Cobalt TiAlN Coated

10mm Diameter End Mill 4 Flute HSS High Speed Steel 8% Cobalt TiAlN Coated
Zoom  Zoom
Our Price:  £7.20
List Price:  £10.80
Saving Of:  £3.60 (33%)
(Exc. 20% VAT)(£8.64 Inc. VAT)

Model:  GS4-10100072
Brand:  APT Tools

Shipped Weight:  55g

Availability:

In stock, immediate despatch

In stock, immediate despatch

APT Tools

Tools for Indexable Inserts

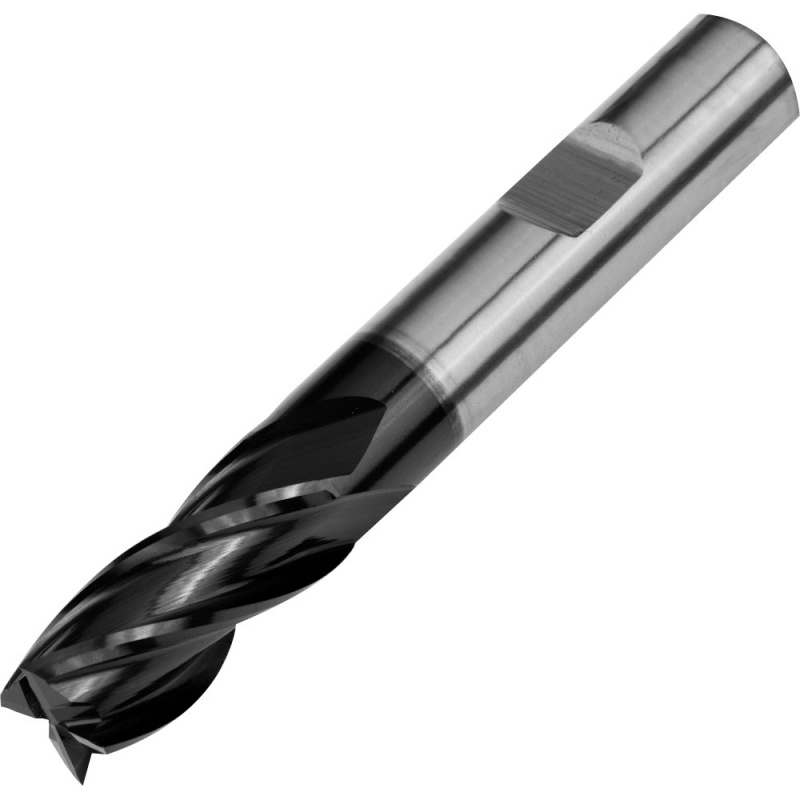

10mm Diameter End Mill 4 Flute HSS High Speed Steel 8% Cobalt TiAlN Coated.

10mm Shank Diameter, 22mm Flute Length, 72mm Overall Length.

Centre Cutting with Flatted Weldon Shank. These Milling Cutters, End Mills are Made using High Quality High M42 Speed Steel with TiAlN Coating.

Suitable for Carbon, Alloy and Tool Steel up to 40HRC. Can also be used on Aluminium and Copper Alloys but consider un-coated cutters for non-ferrous materials.

Dimensions for GS4-10100072 (mm)
Diameter Shank Dia Length Flute Length No of Flutes
10.0 10.0 72 22.0 4
Recommended Speeds and Feeds for Side Milling.
Plain Carbon Steel <500N/mm2 Carbon Steel, Alloy Steel 20HRC <800N/mm2 Alloy Steel, Tool Steel 30HRC <1000N/mm2 Alloy Steel, Tool Steel 40HRC <1300N/mm2 Aluminium & Aluminium Alloys
RPM 1550 Feed 280 mm/min RPM 1250 Feed 225 mm/min RPM 1100 Feed 170 mm/min RPM 650 Feed 90 mm/min RPM 4350 Feed 840 mm/min
For slide milling, if depth of cut is more that 1.5D then reduce the recommended feed rate, start with 75% of the above values then increase to the above values to find the ideal parameters for your setup ideally the max run out should max <0.010mm with the maximum rigidity possible.

If the machine can't make the RPM then try the following Vf=fz*n*z (n=actual RPM of the machine)
