4mm Dia 0.2mm Corner Chamfer 4 Flute Variable Helix Angle High Performance Carbide End Mill

4mm Dia 0.2mm Corner Chamfer 4 Flute Variable Helix Angle High Performance Carbide End Mill
Zoom  Zoom
Our Price:  £9.00
List Price:  £18.90
Saving Of:  £9.90 (52%)
(Exc. 20% VAT)(£10.80 Inc. VAT)

Model:  EDV4SC-06040055-0.2
Brand:  APT Carbide End Mills

Shipped Weight:  58 g

Availability:

Item is on a long delivery or is discontinued

Item is on a long delivery or is discontinued

APT Carbide End Mills

Carbide End Mills APT Brand


Clearance Price.

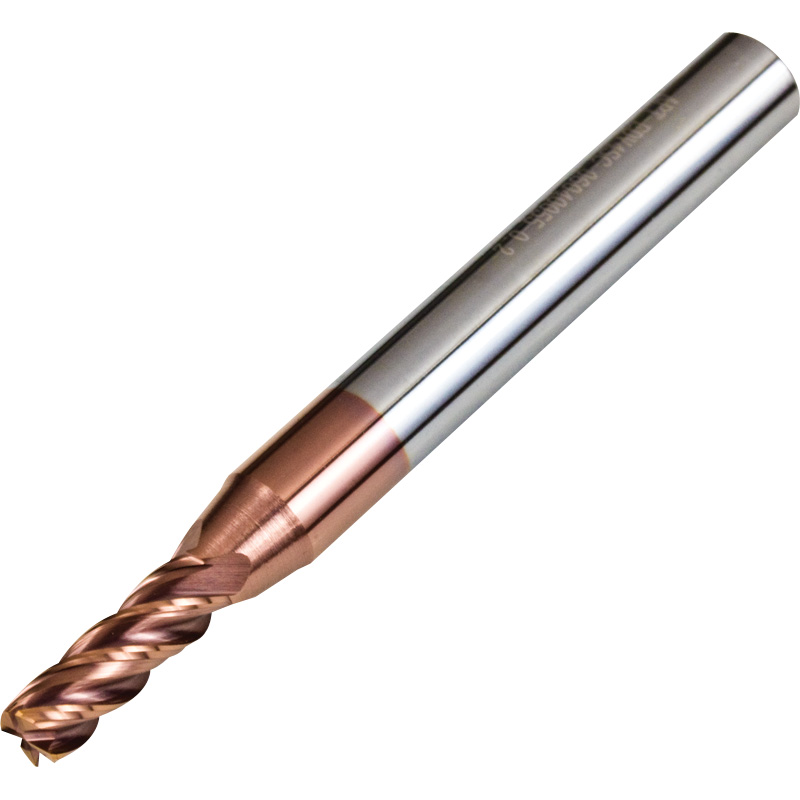

High Performance Variable Helix Angle Carbide End Mill for General Use 4mm Diameter 0.2mm Chamfer Corner 6mm Plain Shank 55mm Long 12mm Flute Length 4 Flutes AlTiCrN Coated.

Very suitable for General Steel, Cast Iron, Hardened Steel up to 58HRC can also be used for Stainless Steel, Titanium Alloy and Heat Resistant Super Alloys.

Dimensions for EDV4SC-06040055-0.2 (mm)
Dia Corner Chamfer Shank Dia Length Flute Length Flutes
4 0.2x45° 6 55 12 4
Speeds and Feeds for Side Milling for Slot Milling reduce values
Cast Iron, Alloy Steel 30HRC Stainless Steel Pre Hardened Quenched and tempered Steel 40HRC Pre Hardened Quenched and tempered Steel 50HRC Hardened Steel 55-58HRC
RPM 10800 Feed 1010 mm/min RPM 5500 Feed 175 mm/min RPM 8000 Feed 770 mm/min RPM 6500 Feed 600 mm/min RPM 5570 Feed 445 mm/min
