LNMX1006-32-125-4TB End Mill for LNMX 1006 Inserts 32mm diameter 4 Teeth

LNMX1006-32-125-4TB End Mill for LNMX 1006 Inserts 32mm diameter 4 Teeth
Zoom  Zoom
Our Price:  £42.50(Exc. 20% VAT)(£51.00 Inc. VAT)

Model:  LNMX1006-32-125-4TB
Brand:  APT Tools

Shipped Weight:  700g

Availability:

In stock, immediate despatch

In stock, immediate despatch

APT Tools

Tools for Indexable Inserts

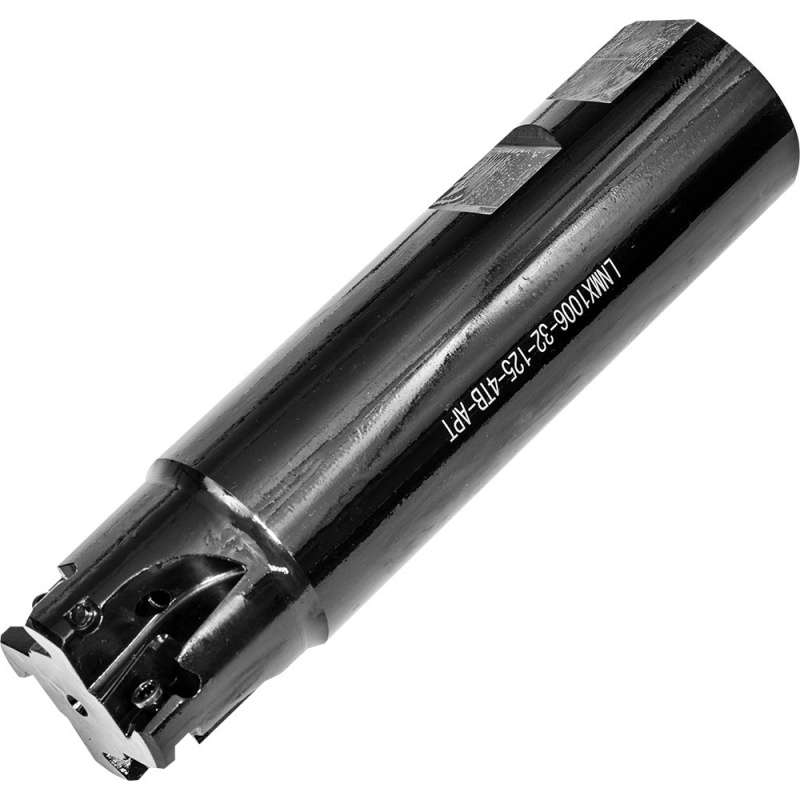

LNMX1006-32-125-4TB End Mill for LNMX 1006 Inserts 32mm diameter 4 Teeth with Weldon Shank.

90° Approach, Through Coolant.

32mm Diameter Shank, 125mm Long, 30mm Reach.

These indexable end milling cutters use 4 edged inserts with the strength of negative inserts while mantaining a positive cutting action lowering the cutting load and maintaining good feed rates.

True 90° for face milling, slotting, ramping and helical interpolation.

Dimensions for LNMX1006-32-125-4TB (mm)
Diameter Shank Reach Length Teeth Inserts Approach Angle Through Hole Coolant
32 32 30 125 4 LNMX 1006 90° Yes





Ramping and Helical Interpolation Parameters (mm)
Cutter Diameter Angle Ramping Helical cutting Helical cutting Helical cutting Helical cutting
Dc α° Min Lr when ap=10 Max hole diameter Max pitch Min hole diameter Max pitch
32 1.2 415 63 2.0 61 1.9
