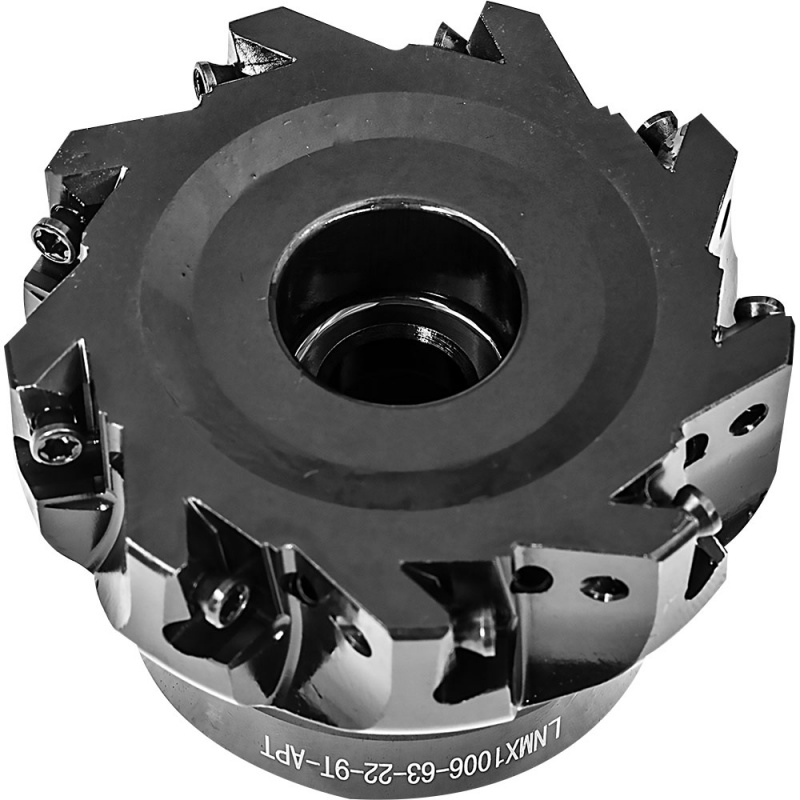

LNMX1006-63-22-9T Face Mill for LNMX 1006 Inserts 63mm diameter 9 Teeth

LNMX1006-63-22-9T Face Mill for LNMX 1006 Inserts 63mm diameter 9 Teeth
Zoom  Zoom
Our Price:  £80.00(Exc. 20% VAT)(£96.00 Inc. VAT)

Model:  LNMX1006-63-22-9T
Brand:  APT Tools

Shipped Weight:  970g

Availability:

Only 10 left in stock - order soon

Only 10 left in stock - order soon

APT Tools

Tools for Indexable Inserts


LNMX1006-63-22-9T Face Mill for LNMX 1006 Inserts 63mm diameter 9 Teeth with 22mm Bore, 40mm High.

90° Approach.

Through Coolant.

These indexable face milling cutters use 4 edged inserts with the strength of negative inserts while mantaining a positive cutting action lowering the cutting load and maintaining good feed rates.

True 90° for face milling, slotting, ramping and helical interpolation.

Dimensions for LNMX1006-63-22-9T (mm)
Diameter Bore Height Teeth Inserts Approach Angle Through Hole Coolant
63 22 40 9 LNMX 1006 90° Yes





Ramping and Helical Interpolation Parameters (mm)
Cutter Diameter Angle Ramping Helical cutting Helical cutting Helical cutting Helical cutting
Dc α° Min Lr when ap=10 Max hole diameter Max pitch Min hole diameter Max pitch
63 0.5 1123 125 1.5 123 1.5
