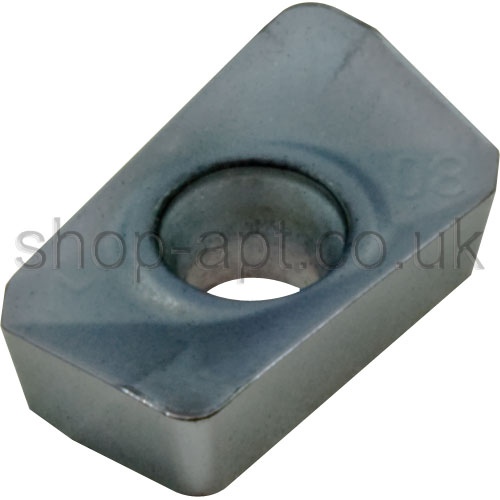

APMT 1135 PDER-M UM25 Carbide Inserts for Milling PVD Coated for General Use

APMT 1135 PDER-M UM25 Carbide Inserts for Milling PVD Coated for General Use
Zoom  Zoom
Our Price:  £1.60
List Price:  £2.40
Saving Of:  £0.80 (33%)
(Exc. 20% VAT)(£1.92 Inc. VAT)

Model:  APMT1135PDER-MUM25
Brand:  Uni-tip Carbide

Shipped Weight:  5 g

Availability:

In stock, immediate despatch

In stock, immediate despatch

Uni-tip Carbide

Carbide Inserts with CVD & PVD Coating by Uni-tip


Carbide Inserts for Milling PVD Coated Grade UM25 (P20–M20–K25 + PVD TiAlN Coating) Economy grade for general Steel, Stainless & Cast

Geometry M for Medium to Light Cutting

Dimensions for APMT 1135 PDER-M UP20 (mm)
Cutting Edge Length Inscribed Circle or Width Thickness Hole Dia Corner Radius Side Clearance
11.0 6.35 3.5 2.7 0.8 11°
General Cutting parameters
Material Material Group Cutting Speed VC: m/min Depth of Cut ap(mm) Feed f(mm) Application Choice
Steel P15-P25 100-180 1.0-8.0 0.08-0.15 Good
Stainless M15-M25 90-160 1.0-4.0 0.08-0.13 Good
Cast iron K20-K30 100-190 1.0-8.0 0.08-0.15 OK

Continue ShoppingTell a Friend
Customer Reviews
APMT 1135 PDER-M UM25 Carbide Inserts for Milling PVD Coated for General Use
Average Rating (2 Reviews):
Write a Review and share your opinions!

Rating:
APMT inserts
09 June 2020  |  Vesa

A very competitive inserts compared to the more expensive ones.

Was this helpful to you?  Yes  /  No

This review has not been appraised.


Rating:
Pleased with the results
17 April 2020  |  Alan

So far they are vastly superior to the inserts supplied with my budget priced face mill, which I purchased elsewhere. Time will tell just how much better they really are but I feel cautiously optimistic.

Was this helpful to you?  Yes  /  No

This review has not been appraised.
