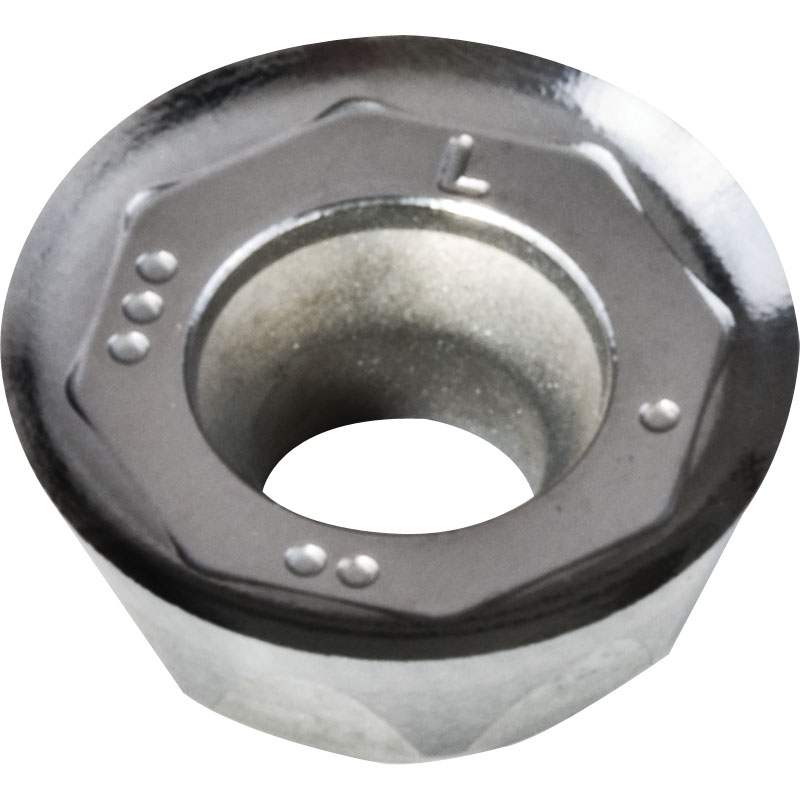

RDHX 1204MO-ALU AK10 Carbide Inserts for Milling Ground and Polished for Aluminium

RDHX 1204MO-ALU AK10 Carbide Inserts for Milling Ground and Polished for Aluminium
Zoom  Zoom
Our Price:  £8.08
List Price:  £12.12
Saving Of:  £4.04 (33%)
(Exc. 20% VAT)(£9.70 Inc. VAT)

Model:  RDHX1204MO-ALUAK10
Brand:  APT Carbide

Shipped Weight:  10 g

Availability:

Only 20 left in stock - order soon

Only 20 left in stock - order soon

APT Carbide

Carbide Inserts APT Brand utilising modern Base Grades, MT-CVD & PVD Coatings and proven Chip Geometries


RDHX 1204MO-ALU AK10 Carbide Inserts for Milling Grade AK10 (K10 Uncoated Micro Grain Carbide Ground with Polished Surface) Main applicationAluminium, Copper Alloys and Plastics

Geometry A for finishing to medium machining of Aluminium & non–ferrous metals

Dimensions for RDHX 1204MO-ALU AK10 (mm)
Cutting Edge Length Inscribed Circle or Width Thickness Hole Dia Corner Radius Side Clearance
12.0 12.0 4.76 4.4 - 15°
General Cutting parameters
Material Hardness HB Cutting Speed VC: m/min Depth of Cut ap(mm) Feed f(mm)
Aluminium Wrought Alloys 60-100 200-2000 1.0-4.0 0.1-0.45
Aluminium Castings Si<12% 80-90 400-1500 1.0-4.0 0.1-0.45
Aluminium Alloys Si>12% 130 250-700 1.0-3.5 0.1-0.30
Bronze & Brass 90-100 200-500 1.0-4.0 0.1-0.45
Plastics, Hard Rubber - 80-200 1.0-3.5 0.1-0.35
