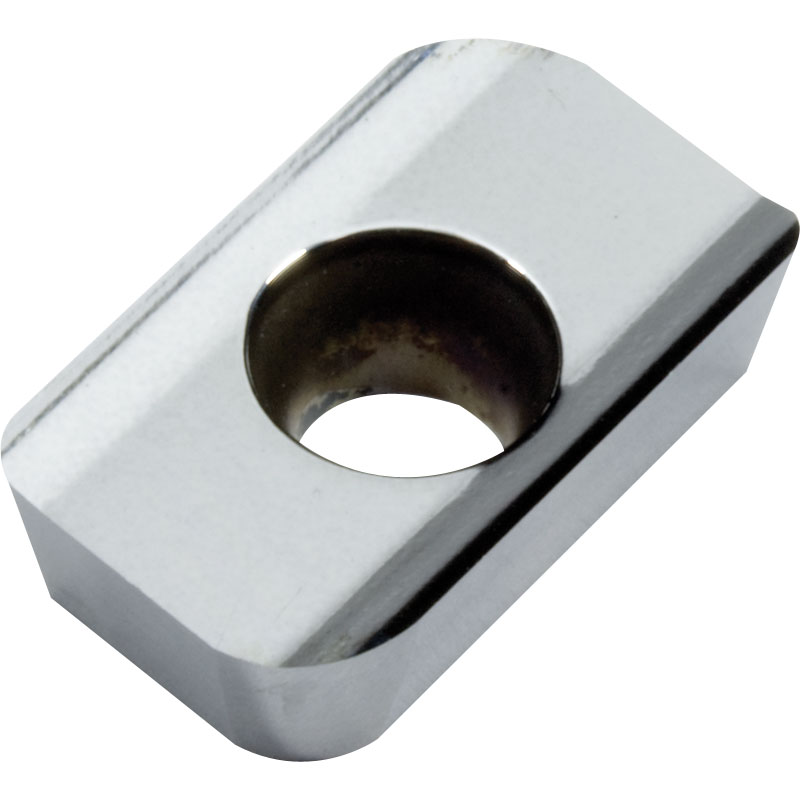

APKT 160432 ALU AK10 Carbide Inserts for Milling Ground and Polished for Aluminium

APKT 160432 ALU AK10 Carbide Inserts for Milling Ground and Polished for Aluminium
Zoom  Zoom
Our Price:  £3.72
List Price:  £5.58
Saving Of:  £1.86 (33%)
(Exc. 20% VAT)(£4.46 Inc. VAT)

Model:  APKT160432ALUAK10
Brand:  Uni-tip Carbide

Shipped Weight:  10g

Availability:

Only 80 left in stock - order soon

Only 80 left in stock - order soon

Uni-tip Carbide

Carbide Inserts with CVD & PVD Coating by Uni-tip


Carbide Inserts for Milling Grade AK10 (K10 Uncoated Micro–Grain Carbide – Ground with Polished Surface) Main application – Aluminium, Copper Alloys, Plastics and Abrasive Materials, extended application – finishing Stainless.

Geometry AL for finishing to medium machining of Aluminium & non–ferrous metals.

Note: cutter body may need to be modified to clear the large radius of this insert.

Dimensions for APHT 160432 ALU AK10 (mm)
Cutting Edge Length Inscribed Circle or Width Thickness Hole Dia Corner Radius Side Clearance
16.80 9.52 4.76 4.4 3.2 11°
Recommended Cutting Conditions - Speeds and Feeds for Milling with APKT 160404 ALU AK10
Material
Grade - Range (ISO)
Cutting Speed m/min
Feed Per Tooth
Depth of Cut
Aluminium Wrought Alloys 60-100 HB
AK15 (N10-N20)
200-2000
0.06-0.131.0-15.0
Aluminium Castings Si<12% 80-90 HB
AK15 (N10-N20)
200-2000
0.06-0.13
1.0-10.0
Aluminium Alloys Si>12% 130 HB
AK15 (N10-N20)
200-1000
0.06-0.131.0-5.0
Brass, Red Bronze 90 HB
AK15 (N10-N20)
250-1000
0.06-0.131.0-10.0
Bronze 100 HB
AK15 (N10-N20)
150-400
0.06-0.13
1.0-5.0
Plastics, Hard Rubber
AK15 (N10-N20)
80-2200.06-0.13
1.0-5.0
