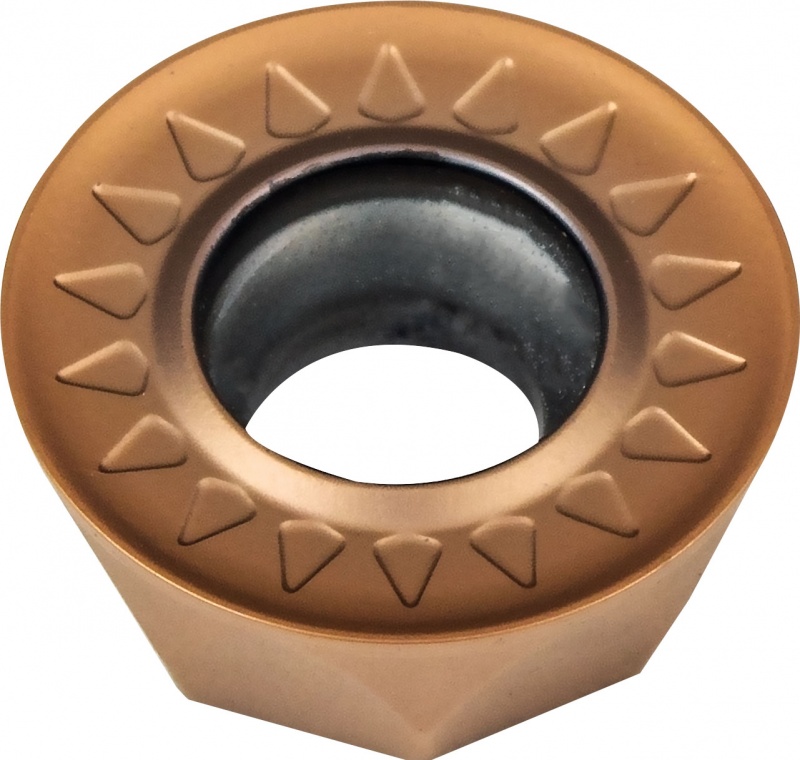

RPMT 1204MOE-JS XM25 Carbide Milling Inserts PVD Coated for Steel & Stainless General Use

(Exc. 20% VAT)(£2.40 Inc. VAT)

Model: RPMT1204MOE-JSXM25
Brand: APT Carbide

Shipped Weight: 12 g

Availability:

In stock, immediate despatch

APT Carbide

Carbide Inserts APT Brand utilising modern Base Grades, MT-CVD & PVD Coatings and proven Chip Geometries

RPMT 1204MOE-JS XM25 Carbide Inserts for Milling Grade XM25. M25, P35, K35, S15 with Multi Layer PVD Coating.

Suitable for all types of Steel, Stainless, Cast Iron, High Temperature Alloys and Cast Iron.

Dimensions for RPMT 1204MOE-JS XM25 UM25 (mm)

Height	Inscribed Circle or Width	Thickness	Hole Dia	Side Clearance
12	12	4.76	4.4	11°

General Cutting parameters

Material	Hardness HB	Cutting Speed VC: m/min	Depth of Cut ap(mm)	Feed f(mm)	Application Choice
Non alloyed steel 0-0.45% C	150-250	90-260 (170)	0.5-6.0	0.20-0.35	Good
Low alloyed steel	250-300	70-220 (160)	0.5-6.0	0.20-0.35	Good
High alloyed steel	200	70-180 (130)	0.5-4.0	0.20-0.30	Good
Stainless - Ferritic	200	70-180 (130)	0.5-4.0	0.20-0.30	Good
Stainless - Austenitic	180	70-200 (140)	0.5-4.0	0.20-0.30	Good
Grey cast iron	180-260	60-130 (100)	0.5-6.0	0.20-0.35	OK
Nodulcast iron	160-260	90-160 (120)	0.5-6.0	0.20-0.35	OK
Malleable / Tempered iron	130-230	60-100 (70)	0.5-6.0	0.20-0.35	OK
HRSA High Temperature Alloys	200-350	30-50 (40)	0.5-3.0	0.20-0.30	OK
Hardened Steel	40-50HRC	45-60 (50)	0.5-3.0	0.20-0.30	OK
