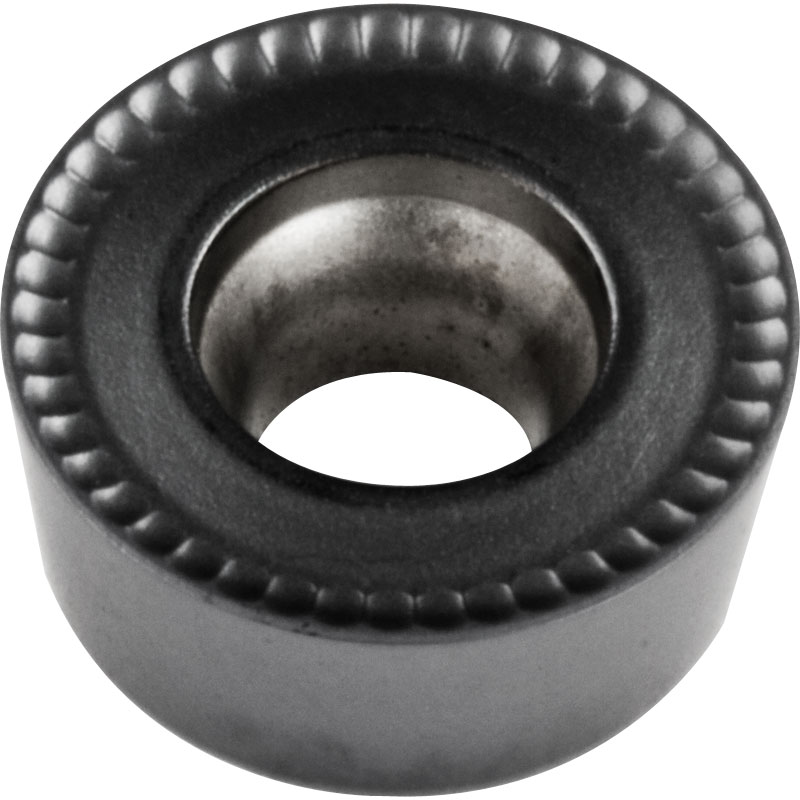

RCMT 10T3MOE-M UM25 Carbide Inserts for Turning PVD Coated for Steel, Stainless & General Use

RCMT 10T3MOE-M UM25 Carbide Inserts for Turning PVD Coated for Steel, Stainless & General Use
Zoom  Zoom
Our Price:  £2.88
List Price:  £4.32
Saving Of:  £1.44 (33%)
(Exc. 20% VAT)(£3.46 Inc. VAT)

Model:  RCMT10T3MOE-MUM25
Brand:  Uni-tip Carbide

Shipped Weight:  6 g

Availability:

Only 70 left in stock - order soon

Only 70 left in stock - order soon

Uni-tip Carbide

Carbide Inserts with CVD & PVD Coating by Uni-tip


RCMT 10T3MOE-M UM25 Carbide Inserts for Turning PVD Coated Grade UM25 (P30-M25-S15 + Multi layer NaCO PVD Coating) Main application - Stainless Steel, Plain Carbon and High Alloy Steel extended application Hi-temp Alloys and Cast

Geometry GM for General Machining of Stainless and Steel

Dimensions for RCMT 10T3MOE-M UM25 (mm)
Cutting Edge Length Inscribed Circle or Height Thickness Hole Dia Corner Radius Side Clearance
10.0 10.0 3.97 4.5 -
General Cutting parameters
Material Material Group Cutting Speed VC: m/min Depth of Cut ap(mm) Feed f(mm) Application Choice
Steel P25-P35 80-200 1.0-4.0 0.10-0.40 Good
Stainless M20-M30 80-160 1.0-3.0 0.10-0.30 Good
Hi-temp Alloys S10-S20 20-60 1.0-2.0 0.10-0.25 OK
Cast iron K20-K30 80-200 1.0-4.0 0.10-0.40 OK
