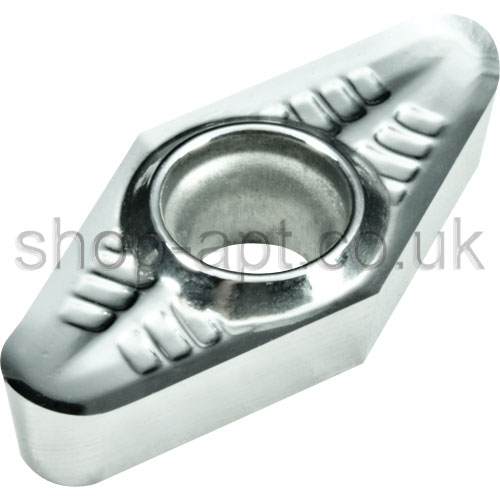

VCGT 220530 ALU AK10 Carbide Inserts for Turning Ground and Polished for Aluminium Uni-tip

VCGT 220530 ALU AK10 Carbide Inserts for Turning Ground and Polished for Aluminium Uni-tip
Zoom  Zoom
Our Price:  £5.92
List Price:  £8.88
Saving Of:  £2.96 (33%)
(Exc. 20% VAT)(£7.10 Inc. VAT)

Model:  VCGT220530ALUAK10
Brand:  Uni-tip Carbide

Shipped Weight:  19g

Availability:

Only 86 left in stock - order soon

Only 86 left in stock - order soon

Uni-tip Carbide

Carbide Inserts with CVD & PVD Coating by Uni-tip


Carbide Inserts for Turning Aluminium Grade AK10 (K10 Uncoated Micro–Grain Carbide – Ground with Polished Surface) Main application – Aluminium, Copper Alloys, Plastics and Abrasive Materials, extended application – finishing Stainless

Geometry ALU for finishing to medium machining of Aluminium & non–ferrous metals



Dimensions for VCGT 220530 ALU AK10 (mm)
Cutting Edge LengthInscribed Circle or Width
Thickness
Hole Dia
Corner Radius
Side Clearance
22.1
12.7
5.56
5.5
3.0

Recommended Cutting Conditions - Speeds and Feeds for Milling with VCGT 220530 ALU AK10
Material
Grade - Range (ISO)
Cutting Speed m/min
Feed Per Tooth
Depth of Cut
Aluminium Wrought Alloys 60-100 HB
AK15 (N10-N20)
200-2000
0.12-0.303.0-15.0
Aluminium Castings Si<12% 80-90 HB
AK15 (N10-N20)
200-2000
0.12-0.25
3.0-10.0
Aluminium Alloys Si>12% 130 HB
AK15 (N10-N20)
200-1000
0.12-0.153.0-5.0
Brass, Red Bronze 90 HB
AK15 (N10-N20)
250-1000
0.12-0.253.0-10.0
Bronze 100 HB
AK15 (N10-N20)
150-400
0.12-0.20
3.0-7.0
Plastics, Hard Rubber
AK15 (N10-N20)
80-2200.12-0.15
3.0-5.0
