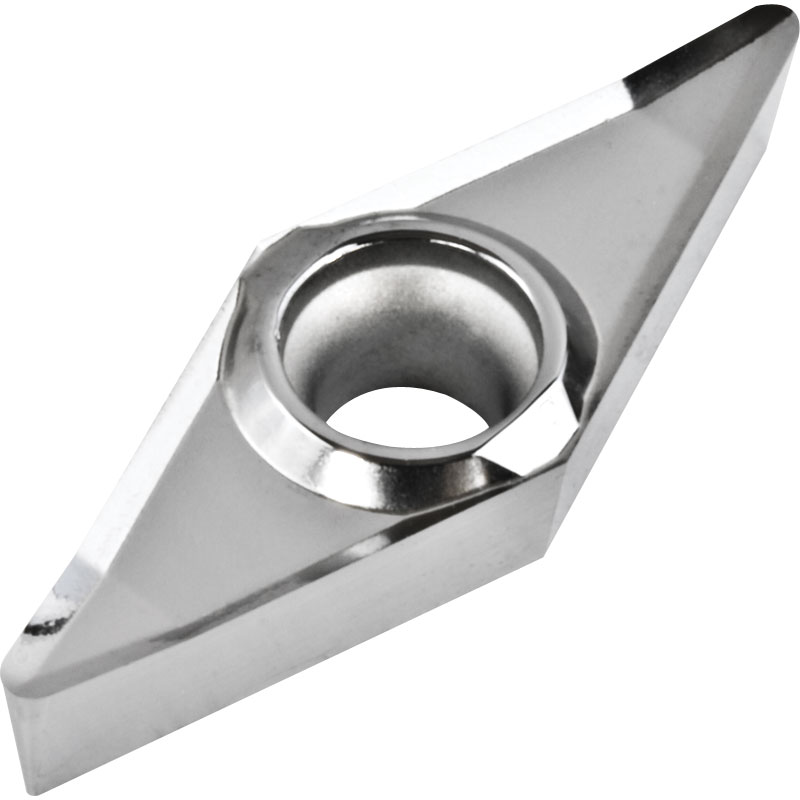

VCGT 160408 ALC AK10 Carbide Inserts for Turning Ground and Polished for Aluminium Uni-tip

VCGT 160408 ALC AK10 Carbide Inserts for Turning Ground and Polished for Aluminium Uni-tip
Zoom  Zoom
Our Price:  £4.00
List Price:  £6.00
Saving Of:  £2.00 (33%)
(Exc. 20% VAT)(£4.80 Inc. VAT)

Model:  VCGT160408ALCAK10
Brand:  Uni-tip Carbide

Shipped Weight:  15 g

Availability:

In stock, immediate despatch

In stock, immediate despatch

Uni-tip Carbide

Carbide Inserts with CVD & PVD Coating by Uni-tip


Carbide Inserts for Turning Aluminium Grade AK10, K10 Uncoated Micro–Grain Carbide Ground with Polished Surface.

Main application Aluminium, Copper Alloys, Plastics and Abrasive Materials.

Geometry ALC simple chip breaker design performs well in copy turning applications on Aluminium,  non–ferrous metals and plastics.

Dimensions for VCGT 160408 ALC AK10 (mm)
Cutting Edge Length Inscribed Circle or Width Thickness Hole Dia Corner Radius Side Clearance
16.5 9.53 4.76 4.4 0.8
General Cutting parameters
Material Hardness HB Cutting Speed VC: m/min Feed f(mm/rev) Depth of Cut ap(mm)
Aluminium Wrought Alloys 60-100 400-2200 0.30 (0.15-0.50) 1.5 (0.5-5.0)
Aluminium Castings Si<12% 80-90 400-800 0.25 (0.15-0.45) 1.5 (0.5-4.5)
Aluminium Alloys Si>12% 130 250-400 0.20 (0.15-0.40) 1.5 (0.5-4.0)
Bronze & Brass 90-100 200-500 0.30 (0.15-0.50) 1.5 (0.5-5.0)
Plastics, Hard Rubber - 80-200 0.30 (0.15-0.50) 1.5 (0.5-5.0)
