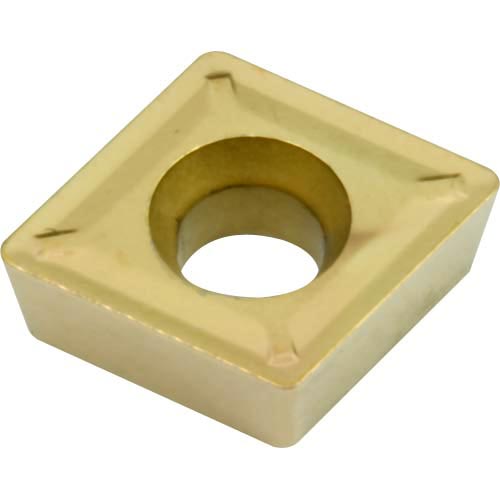

CCMT 080304 TIN25 Carbide Inserts for Turning PVD Coated for General Use APT/Canela

(Exc. 20% VAT)(£5.68 Inc. VAT)

Model: CCMT080304TIN25
Brand: Canela

Shipped Weight: 6g

Availability:

Special order, 14-19 days

Canela

Toolholders and Milling Cutters for Indexable Inserts made in Europe.

Carbide Inserts for Turning Grade TIN25 (P25–M20 + MT–CVD TiN–TiCN–AlO2–TiN Coating) Main application – Alloy Steel, extended application Stainless

Geometry for General Machining

Dimensions for 080304 TIN25 (mm)

Cutting Edge Length	Inscribed Circle or Height	Thickness	Hole Dia	Corner Radius	Side Clearance
8.05	7.94	3.18	3.3	0.4	7°
