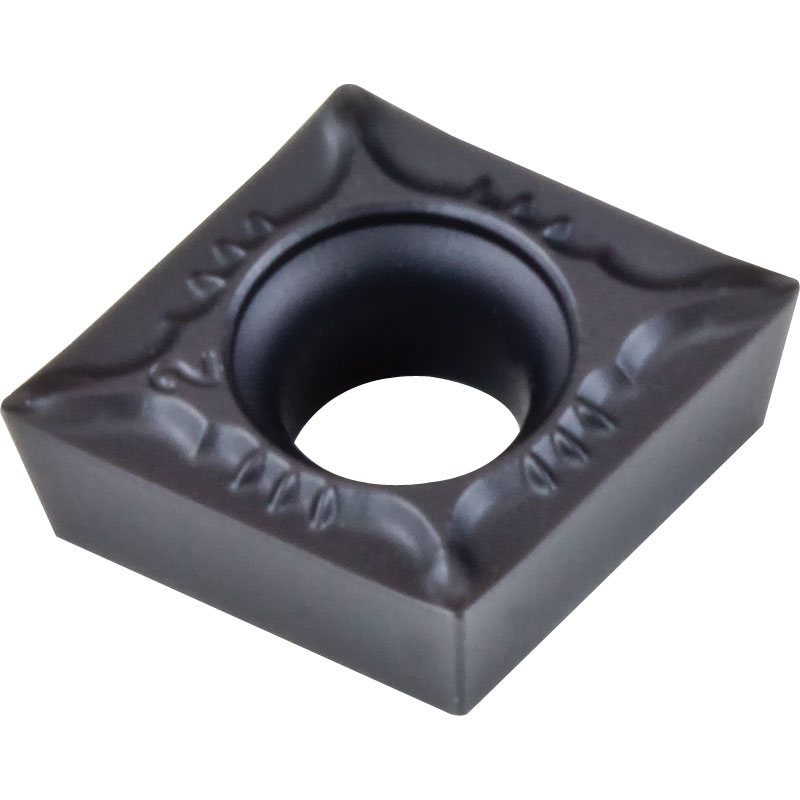

CCMT 09T302 FP PC25 Carbide Inserts for Turning CVD Coated for Finishing Steel

Our Price:	£4.44
List Price:	~~£6.66~~
Saving Of:	£2.22 (33%)

(Exc. 20% VAT)(£5.33 Inc. VAT)

Model: CCMT09T302FPPC25
Brand: APT Carbide

Shipped Weight: 6 g

Availability:

Only 30 left in stock - order soon

APT Carbide

Carbide Inserts APT Brand utilising modern Base Grades, MT-CVD & PVD Coatings and proven Chip Geometries

Carbide Inserts for Turning CVD Coated Grade PC25 (P25, K20 + CVD Ti(C,N) + Al2O3 Coating) with surface treatment) Main application Carbon, Alloy & Tool Steel, extended application Cast & Stainless

Geometry FP for Finishing with Continuous Cutting Depth or Small Inconsistent Depth

Dimensions for CCMT 09T302 FP PC25 (mm)

Cutting Edge Length	Inscribed Circle or Height	Thickness	Hole Dia	Corner Radius	Side Clearance
9.7	9.52	3.97	4.4	0.2	7°

General Cutting parameters

Material	Hardness HB	Cutting Speed VC: m/min	Depth of Cut ap(mm)	Feed f(mm)
Non alloyed steel 0-0.45% C	150-250	170-240	0.5-2.25	0.08-0.14
Low alloyed steel	250-300	100-190	0.5-2.25	0.08-0.14
High alloyed steel	200	130-210	0.5-2.25	0.08-0.12
Corrosion resistant steel	200	130-210	0.5-2.25	0.08-0.12
Stainless - Ferritic	200	140-210	0.5-2.25	0.08-0.12
Stainless - Austenitic	180	100-210	0.5-2.25	0.08-0.12
Stainless - Martensitic	330	70-100	0.5-2.25	0.08-0.12
Grey cast iron	180	130-210	0.5-2.25	0.08-0.14
Spheroidal cast iron	160	120-240	0.5-2.25	0.08-0.14
Malleable / Tempered iron	130	150-250	0.5-2.25	0.08-0.14
