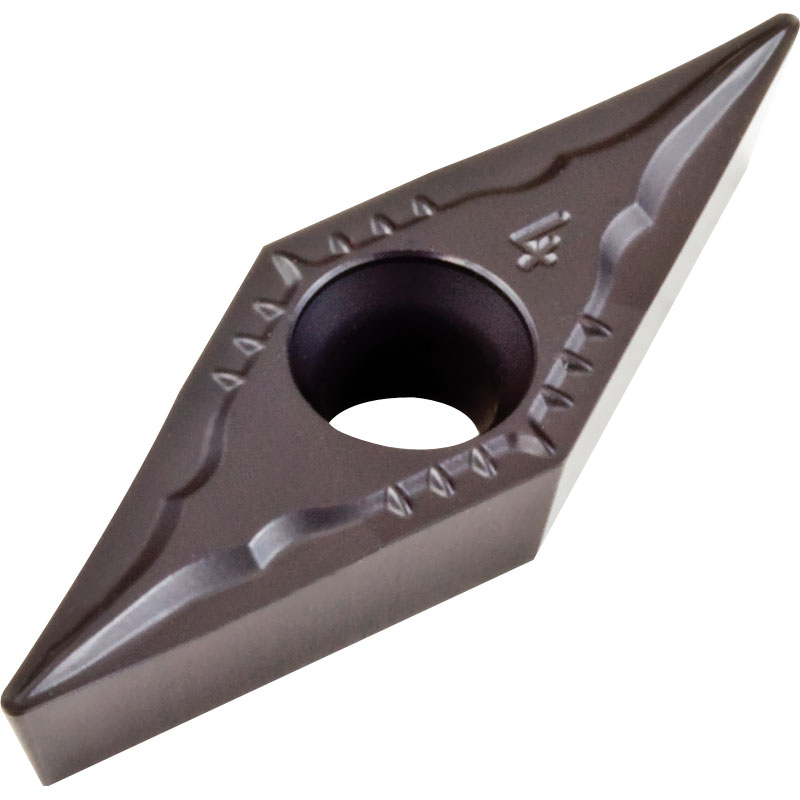

VCMT 110302 FP PC25 Carbide Inserts for Turning CVD Coated for Finishing Steel

VCMT 110302 FP PC25 Carbide Inserts for Turning CVD Coated for Finishing Steel
Zoom  Zoom
Our Price:  £4.22
List Price:  £6.33
Saving Of:  £2.11 (33%)
(Exc. 20% VAT)(£5.06 Inc. VAT)

Model:  VCMT110302FPPC25
Brand:  APT Carbide

Shipped Weight:  5g

Availability:

Only 30 left in stock - order soon

Only 30 left in stock - order soon

APT Carbide

Carbide Inserts APT Brand utilising modern Base Grades, MT-CVD & PVD Coatings and proven Chip Geometries


Carbide Inserts for Turning CVD Coated Grade PC25 (P25, K20 + CVD Ti(C,N) + Al2O3 Coating) with surface treatment) Main application Carbon, Alloy & Tool Steel, extended application Cast & Stainless

Geometry FP for Finishing with Continuous Cutting Depth or Small Inconsistent Depth

Dimensions for VCMT 110302 FP PC25 (mm)
Cutting Edge Length Inscribed Circle or Height Thickness Hole Dia Corner Radius Side Clearance
11.1 6.35 3.18 2.8 0.2
General Cutting parameters
Material Hardness HB Cutting Speed VC: m/min Depth of Cut ap(mm) Feed f(mm)
Non alloyed steel 0-0.45℅ C 150-250 170-240 0.5-2.0 0.07-0.12
Low alloyed steel 250-300 100-190 0.5-2.0 0.07-0.12
High alloyed steel 200 130-210 0.5-2.0 0.07-0.12
Corrosion resistant steel 200 130-210 0.5-2.0 0.07-0.12
Stainless - Ferritic 200 140-210 0.5-2.0 0.07-0.12
Stainless - Austenitic 180 100-210 0.5-2.0 0.07-0.12
Stainless - Martensitic 330 70-100 0.5-2.0 0.07-0.12
Grey cast iron 180 130-210 0.5-2.0 0.07-0.12
Spheroidal cast iron 160 120-240 0.5-2.0 0.07-0.12
Malleable / Tempered iron 130 150-250 0.5-2.0 0.07-0.12
