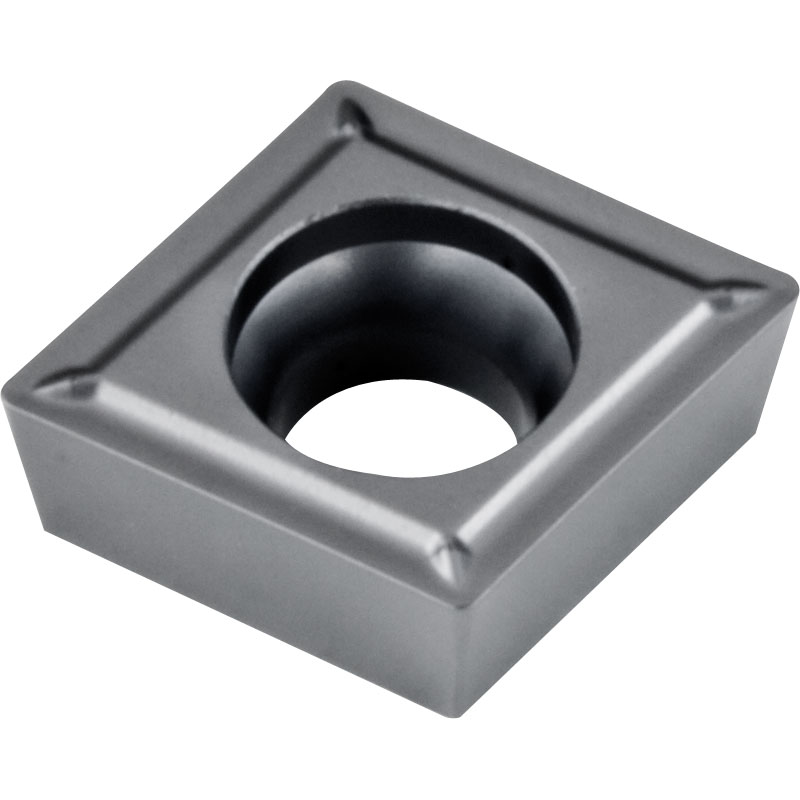

CCMT 09T304 EF CM10 Cermet Inserts for Finishing Steel and Stainless

CCMT 09T304 EF CM10 Cermet Inserts for Finishing Steel and Stainless
Zoom  Zoom
Our Price:  £4.04
List Price:  £6.06
Saving Of:  £2.02 (33%)
(Exc. 20% VAT)(£4.85 Inc. VAT)

Model:  CCMT09T304EFCM10
Brand:  APT Carbide

Shipped Weight:  6g

Availability:

Only 10 left in stock - order soon

Only 10 left in stock - order soon

APT Carbide

Carbide Inserts APT Brand utilising modern Base Grades, MT-CVD & PVD Coatings and proven Chip Geometries


Cermet Inserts for Finish Turning of Steel and Stainless in grade CM10 (P15, M10, K10) provides superb surface finish under stable conditions resulting in excellent productivity and predictable tool life, outstanding performance when finishing Stainless.

Grade CM10 is highly wear resistant and is suitable only for stable conditions with continuous cutting.

Geometry EF for Fine Finishing to Finishing Cuts

Dimensions for CCMT 09T304 EF CM10 (mm)
Cutting Edge Length Inscribed Circle or Height Thickness Hole Dia Corner Radius Side Clearance
9.7 9.52 3.97 4.4 0.4
General Cutting parameters
Material Hardness HB Cutting Speed VC: m/min Depth of Cut ap(mm) Feed f(mm)
Non alloyed steel 0-0.45℅ C 150-250 230-270 0.10-1.65 0.05-0.20
Low alloyed steel 250-300 180-230 0.10-1.65 0.05-0.20
High alloyed steel 200 160-200 0.10-1.50 0.05-0.18
Corrosion resistant steel 200 230-270 0.10-1.50 0.05-0.18
Stainless - Ferritic 200 170-240 0.10-1.50 0.05-0.18
Stainless - Austenitic 180 200-240 0.10-1.50 0.05-0.18
Stainless - Martensitic 330 130-160 0.10-1.50 0.05-0.18
Grey cast iron 180 - - -
Spheroidal cast iron 160 220-300 0.10-1.65 0.05-0.20
Malleable / Tempered iron 130 250-350 0.10-1.65 0.05-0.20
