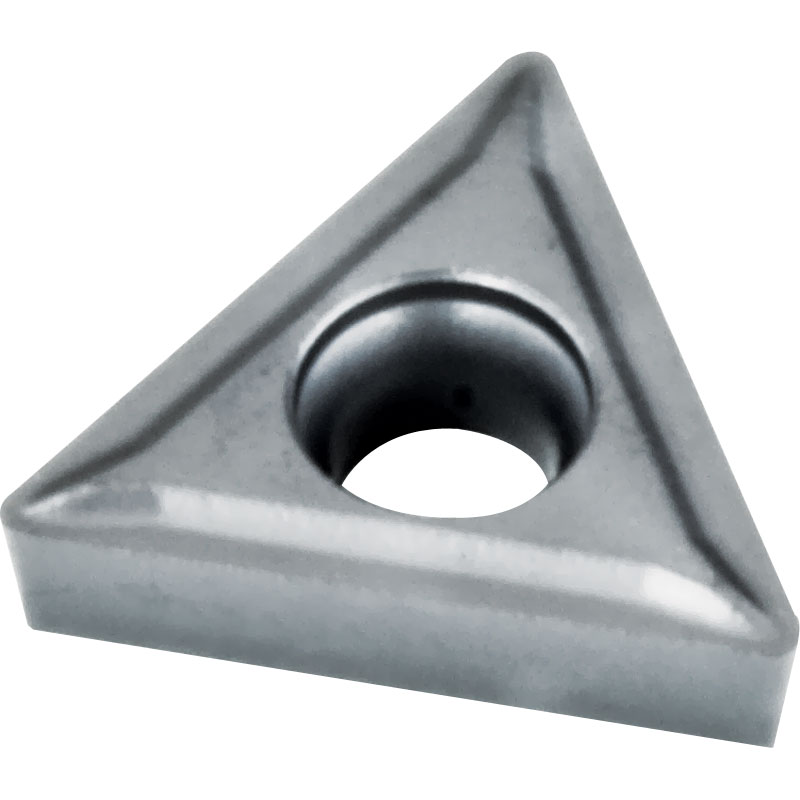

TCMT 110204 EF CM10 Cermet Inserts for Finishing Steel and Stainless

Our Price:	£3.90
List Price:	~~£5.85~~
Saving Of:	£1.95 (33%)

(Exc. 20% VAT)(£4.68 Inc. VAT)

Model: TCMT110204EFCM10
Brand: APT Carbide

Shipped Weight: 4g

Availability:

Only 30 left in stock - order soon

APT Carbide

Carbide Inserts APT Brand utilising modern Base Grades, MT-CVD & PVD Coatings and proven Chip Geometries

Cermet Inserts for Finish Turning of Steel and Stainless in grade CM10 (P15, M10, K10) provides superb surface finish under stable conditions resulting in excellent productivity and predictable tool life, outstanding performance when finishing Stainless.

Grade CM10 is highly wear resistant and is suitable only for stable conditions with continuous cutting.

Geometry EF for Fine Finishing to Finishing Cuts

Dimensions for TCMT 110204 EF CM10 (mm)

Cutting Edge Length	Inscribed Circle or Height	Thickness	Hole Dia	Corner Radius	Side Clearance
11.0	6.35	2.38	2.8	0.4	7°

General Cutting parameters

Material	Hardness HB	Cutting Speed VC: m/min	Depth of Cut ap(mm)	Feed f(mm)
Non alloyed steel 0-0.45℅ C	150-250	230-270	0.1-1.5	0.05-0.18
Low alloyed steel	250-300	180-230	0.1-1.5	0.05-0.18
High alloyed steel	200	160-200	0.1-1.3	0.05-0.15
Corrosion resistant steel	200	230-270	0.1-1.3	0.05-0.15
Stainless - Ferritic	200	170-240	0.1-1.3	0.05-0.15
Stainless - Austenitic	180	200-240	0.1-1.3	0.05-0.15
Stainless - Martensitic	330	130-160	0.1-1.3	0.05-0.15
Grey cast iron	180	-	-	-
Spheroidal cast iron	160	220-300	0.1-1.5	0.05-0.18
Malleable / Tempered iron	130	250-350	0.1-1.5	0.05-0.18
