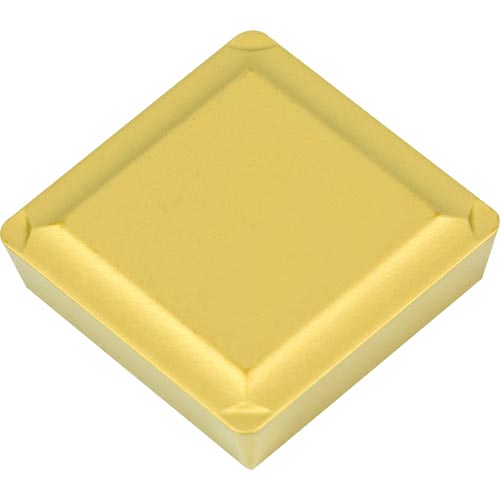

SPMR 120308 1135 Carbide Inserts for Turning CVD Coated for General Use APT

SPMR 120308 1135 Carbide Inserts for Turning CVD Coated for General Use APT
Zoom  Zoom
Our Price:  £6.25
List Price:  £9.38
Saving Of:  £3.13 (33%)
(Exc. 20% VAT)(£7.50 Inc. VAT)

Model:  SPMR1203081135
Brand:  APT Carbide

Shipped Weight:  10 g

Availability:

Only 10 left in stock - order soon

Only 10 left in stock - order soon

APT Carbide

Carbide Inserts APT Brand utilising modern Base Grades, MT-CVD & PVD Coatings and proven Chip Geometries


Carbide Inserts for Turning CVD Coated Grade 1135 (P35–M30 + MT–CVD TiN–TiCN–AlO2–TiN Coating) Main application – Alloy Steel, extended application Stainless

Geometry for General Machining

Dimensions for SPMR 120308 1135 (mm)
Length Inscribed Circle or Width Thickness Corner Radius Side Clearance
12.7 12.7 3.18 0.8 11°
General Cutting parameters
Material Material Group Cutting Speed VC: m/min Depth of Cut ap(mm) Feed f(mm) Application Choice
Steel P30-P40 90-280 1.0-6.0 0.15-0.4 Good
