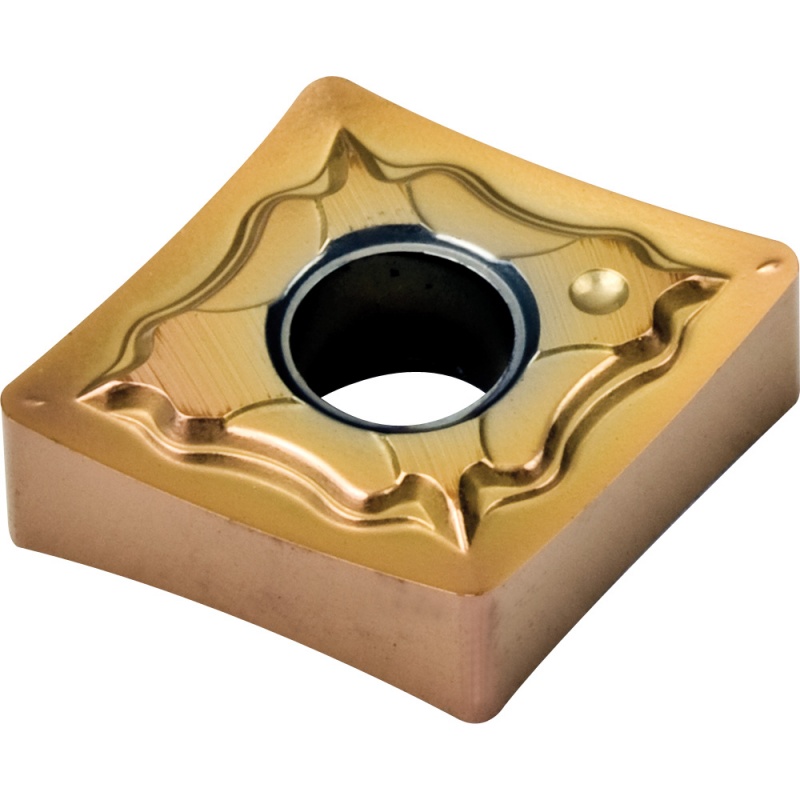

CNGG 120404 FS US05 Carbide Turning Inserts for Finishing High-Temperature Alloys

Our Price:	£6.80
List Price:	~~£10.20~~
Saving Of:	£3.40 (33%)

(Exc. 20% VAT)(£8.16 Inc. VAT)

Model: CNGG120404FSUS05
Brand: Uni-tip Carbide

Shipped Weight: 12g

Availability:

Only 97 left in stock - order soon

Uni-tip Carbide

Carbide Inserts with CVD & PVD Coating by Uni-tip

CNGG 120404 FS US05 Carbide Inserts for Turning PVD Coated Grade US05 (S05-M10 + Multi layer PVD Coating) Main application Hi-temperature Alloys, Inconel, Titanium Alloys and Stainless Steel under difficult conditions.

Geometry FS for Finishing to Fine Finishing High-temperature Alloys.

Dimensions for CNGG 120404 FS US05 (mm)

Cutting Edge Length	Inscribed Circle or Height	Thickness	Hole Dia	Corner Radius	Side Clearance
12.7	12.7	4.76	5.16	0.4	0°

Recommended Cutting Conditions

Material	Cutting Speed m/min	Feed mm/rev	Depth of Cut
Stainless Steel 180-200 HB	100-180 (140)	0.12-0.40	0.16-1.0
Duplex Stainless 230-260 HB	50-90 (75)	0.12-0.35	0.16-0.8
Iron Based Hi-temp Alloys 200-280 HB	30-100 (70)	0.12-0.40	0.16-1.0
Nickel or Cobalt Based 250 HB	25-90 (60)	0.12-0.30	0.16-0.6
Nickel or Cobalt Based 30-58 HRC	30-100 (70)	0.12-0.35	0.16-0.7
Pure Titanium	70-120 (90)	0.12-0.40	0.16-1.0
Titanium Alpha + Beta Alloys	40-100 (70)	0.12-0.35	0.16-0.8
