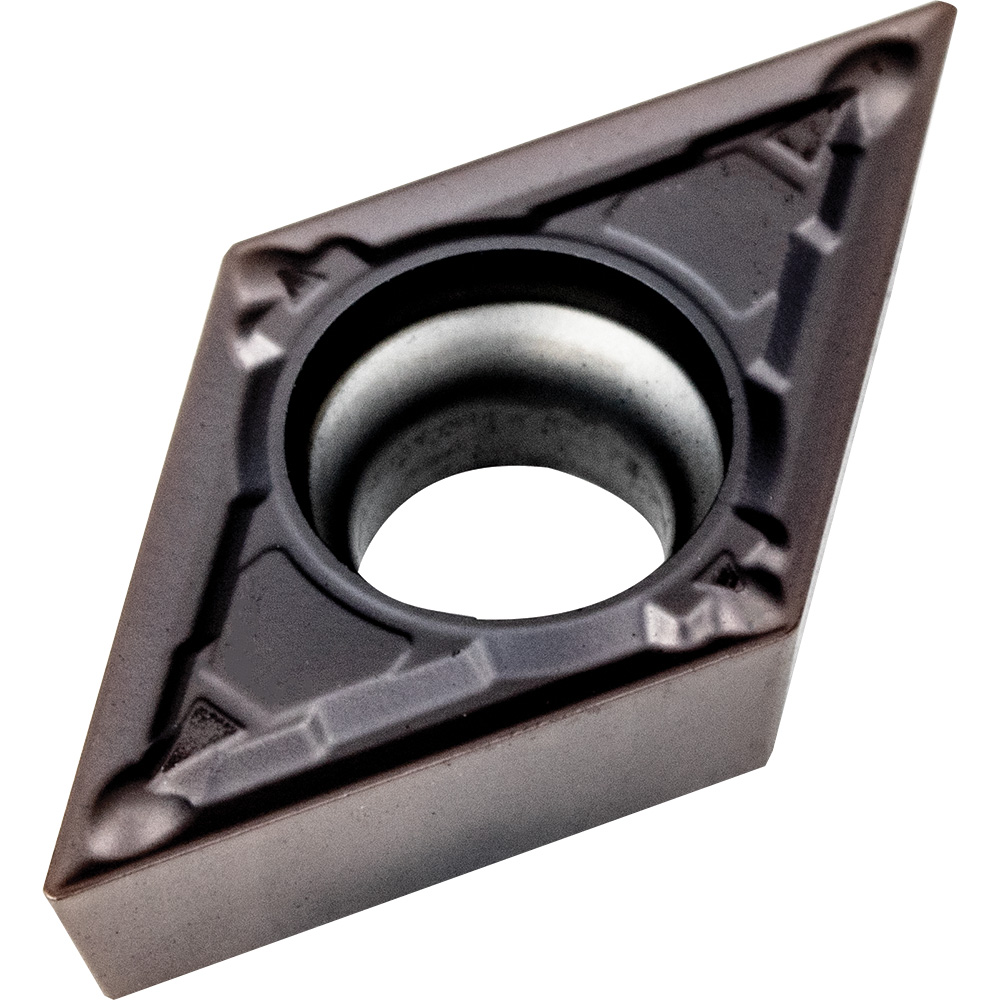

DCMT 11T302 MV UM25A Carbide Inserts for Turning PVD Coated for Stainless & General Use

DCMT 11T302 MV UM25A Carbide Inserts for Turning PVD Coated for Stainless & General Use
Zoom  Zoom
Our Price:  £3.80
List Price:  £5.70
Saving Of:  £1.90 (33%)
(Exc. 20% VAT)(£4.56 Inc. VAT)

Model:  DCMT11T302MVUM25A
Brand:  Uni-tip Carbide

Shipped Weight:  7 g

Availability:

In stock, immediate despatch

In stock, immediate despatch

Share

Uni-tip Carbide

Carbide Inserts with CVD & PVD Coating by Uni-tip

DCMT 11T302 MV UM25A Carbide Inserts for Turning PVD Coated Grade UM25A, M25, P35, S15 with multi layer PVD Coating.

Main application Stainless Steel, Plain Carbon and High Alloy Steel extended application Hi-temp Alloys and Cast.

Geometry MV for Semi Finishing to Finishing on Stainless and Steel.

Dimensions for DCMT 11T302 MV UM25a (mm)
Cutting Edge Length Inscribed Circle or Height Thickness Hole Dia Corner Radius Side Clearance
11.7 9.525 3.97 4.4 0.2 7°
General Cutting parameters
Material Material Group Cutting Speed VC: m/min Depth of Cut ap(mm) Feed f(mm) Application Choice
Steel P25-P35 70-180 0.5-4.5 0.10-0.20 Good
Stainless M10-M30 70-160 0.5-3.5 0.10-0.20 Good
Hi-temp Alloys S10-S20 20-60 0.5-2.0 0.10-0.15 OK
Cast iron K20-K30 70-180 0.5-4.5 0.10-0.20 OK
