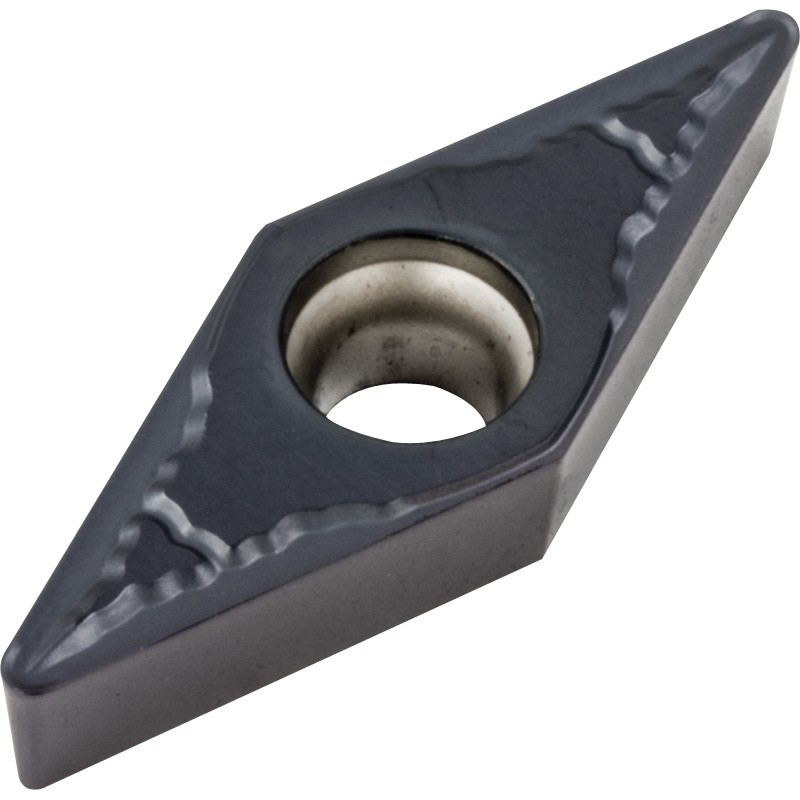

VCMT 110304 MX UM25 Carbide Inserts for Turning PVD Coated for Stainless & General Use

Our Price:	£3.56
List Price:	~~£5.34~~
Saving Of:	£1.78 (33%)

(Exc. 20% VAT)(£4.27 Inc. VAT)

Model: VCMT110304MXUM25
Brand: Uni-tip Carbide

Shipped Weight: 5 g

Availability:

96 in stock, no more available

Uni-tip Carbide

Carbide Inserts with CVD & PVD Coating by Uni-tip

VCMT 110304 MX UM25 Carbide Inserts for Turning PVD Coated Grade UM25 (M25-P35-S15 + Multi layer NaCO PVD Coating) Main application - Stainless Steel, Plain Carbon and High Alloy Steel extended application Hi-temp Alloys and Cast

Geometry MX for Medium Machining on Stainless and Steel

Dimensions for VCMT 110304 MX UM25 (mm)

Cutting Edge Length	Inscribed Circle or Height	Thickness	Hole Dia	Corner Radius	Side Clearance
11.0	6.35	3.18	2.8	0.4	7°

General Cutting parameters

Material	Material Group	Cutting Speed VC: m/min	Depth of Cut ap(mm)	Feed f(mm)	Application Choice
Steel	P25-P35	80-200	1.0-3.0	0.10-0.25	Good
Stainless	M20-M30	80-160	1.0-2.5	0.10-0.15	Good
Hi-temp Alloys	S10-S20	20-60	1.0-1.5	0.10-0.15	OK
Cast iron	K20-K30	80-200	1.0-3.0	0.10-0.25	OK
