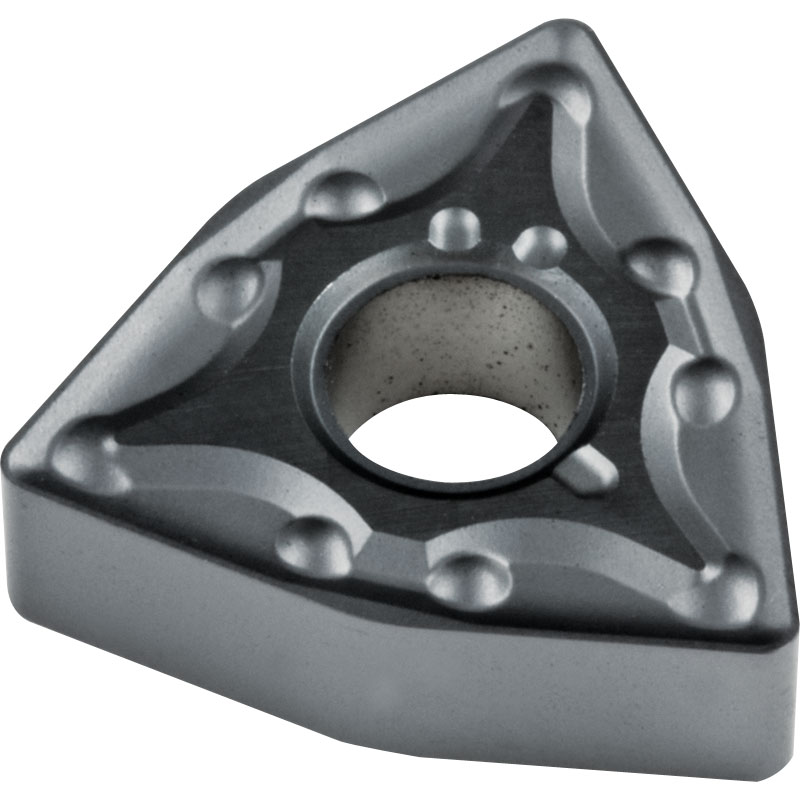

WNMG 080408 GM UM25 Carbide Inserts for Turning PVD Coated for Steel, Stainless & General Use

Our Price:	£3.68
List Price:	~~£5.52~~
Saving Of:	£1.84 (33%)

(Exc. 20% VAT)(£4.42 Inc. VAT)

Model: WNMG080408GMUM25
Brand: Uni-tip Carbide

Shipped Weight: 13 g

Availability:

Only 90 left in stock - order soon

Uni-tip Carbide

Carbide Inserts with CVD & PVD Coating by Uni-tip

WNMG 080408 GM UM25 Carbide Inserts for Turning PVD Coated Grade UM25 (P30-M25-S15 + Multi layer NaCO PVD Coating) Main application - Stainless Steel, Plain Carbon and High Alloy Steel extended application Hi-temp Alloys and Cast

Geometry GM for General Machining of Stainless and Steel

Dimensions for WNMG 080408 GM UM25 (mm)

Cutting Edge Length	Inscribed Circle or Height	Thickness	Hole Dia	Corner Radius	Side Clearance
8.68	12.7	4.76	5.16	0.8	0°

General Cutting parameters

Material	Material Group	Cutting Speed VC: m/min	Depth of Cut ap(mm)	Feed f(mm)	Application Choice
Steel	P25-P35	80-200	1.0-5.0	0.20-0.45	Good
Stainless	M20-M30	80-160	1.0-3.0	0.20-0.30	Good
Hi-temp Alloys	S10-S20	20-60	1.0-3.0	0.20-0.20	OK
Cast iron	K20-K30	80-200	1.0-5.0	0.20-0.45	OK
