Spiral Flute Chamfering Milling Cutter 8mm Diameter AlTiN Coated Carbide 90 Point 4 Flute

Spiral Flute Chamfering Milling Cutter 8mm Diameter AlTiN Coated Carbide 90 Point 4 Flute
Zoom  Zoom
 Spiral Flute Chamfering Milling Cutter 8mm Diameter AlTiN Coated Carbide 90 Point 4 FluteSpiral Flute Chamfering Milling Cutter 8mm Diameter AlTiN Coated Carbide 90 Point 4 Flute
Our Price:  £24.00
List Price:  £36.00
Saving Of:  £12.00 (33%)
(Exc. 20% VAT)(£28.80 Inc. VAT)

Model:  SFCT4-08080060
Brand:  APT Carbide End Mills

Shipped Weight:  75 g

Availability:

In stock, immediate despatch

In stock, immediate despatch

APT Carbide End Mills

Carbide End Mills APT Brand

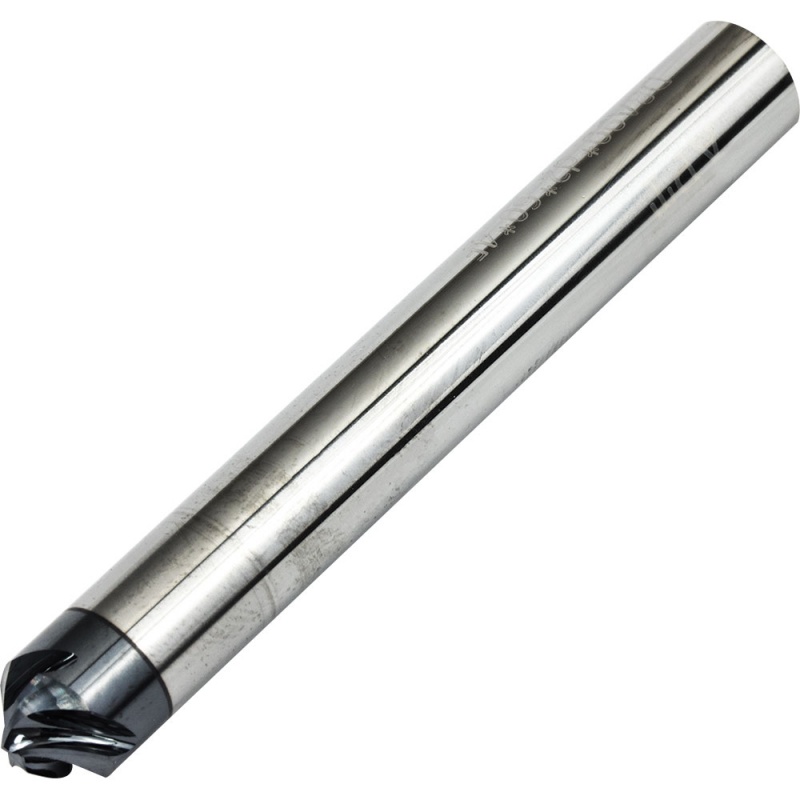

Spiral Flute Chamfering Milling Cutter 8mm Diameter AlTiN Coated Carbide 90° Point 4 Flute.

Can be used for chamfer and deburring operations it is possible to use the full cutting edge length due to the unique cutting edge this also reduces chance of vibration providing high quality finish and extends tool life by 300%-800% comparied to conventional straight edge chamfering cutters.

AlTiN Coated for General Use on materials up to 55HRC, performs well on Steel, Stainless, Cast Iron, High Temp Alloys, Copper Alloys and Hardened Steel.

Dimensions for SFCT4-08080060 (mm)
Diameter Shank Diameter Tip Diameter Max Depth of Cut Length No of Flutes
8 8 2.0 3 60 4
Chamfering Speeds and Feeds - vc = surface cutting speed in m/min.
Cast Iron, Nodular Cast Iron Carbon Steel, Alloy Steel -750N/Mm2 Pre Hardened Quenched and Tempered Steel 40HRC Stainless Steel High Temp Alloy Aluminium Alloy
vc 170 m/min Feed 0.042 fz mm/tooth vc 190 m/min Feed 0.050 fz mm/tooth vc 140 m/min Feed 0.040 fz mm/tooth vc 120 m/min Feed 0.034 fz mm/tooth vc 45 m/min Feed 0.024 fz mm/tooth vc 250m/min Feed 0.060 fz mm/tooth
De-burring Speeds and Feeds - vc = surface cutting speed in m/min.
Cast Iron, Nodular Cast Iron Carbon Steel, Alloy Steel -750N/Mm2 Pre Hardened Quenched and Tempered Steel 40HRC Stainless Steel High Temp Alloy Aluminium Alloy

vc 230 m/min Feed 0.072 fz mm/tooth

vc 250 m/min Feed 0.082 fz mm/tooth vc 180 m/min Feed 0.058 fz mm/tooth vc 160 m/min Feed 0.054 fz mm/tooth vc 65 m/min Feed 0.040 fz mm/tooth vc 330m/min Feed 0.100 fz mm/tooth
