Economy Series Ball Nose Carbide End Mill 8mm Diameter 2 Flute TiAlN Coated 100mm Long

(Exc. 20% VAT)(£14.40 Inc. VAT)

Model: EC2B-08080100
Brand: APT Carbide End Mills

Shipped Weight: 80 g

Availability:

In stock, immediate despatch

APT Carbide End Mills

Carbide End Mills APT Brand

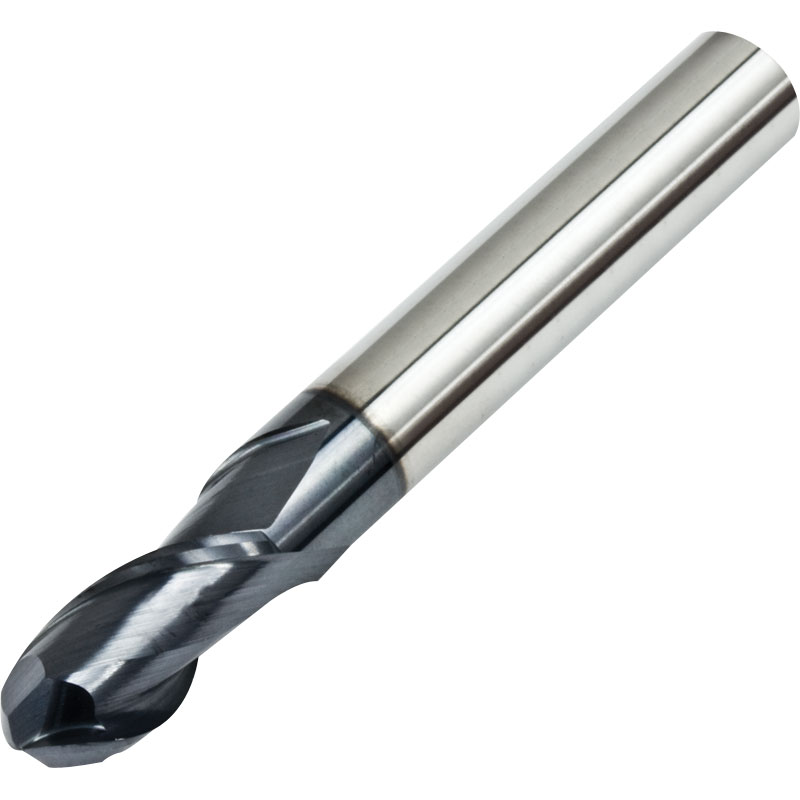

EC2B-08080100 Economy Series Ball Nose Carbide End Mill 8mm Diameter 8mm Plain Shank 100mm Long 20mm Flute Length 2 Flutes TiAlN Coated

Suitable for Steel, Cast Iron and General Use on Materials up to 45HRC

Dimensions for EC2B-08080100 (mm)

Diameter	Radius	Shank Dia	Length	Flute Length	No of Flutes
8.0	4.0	8.0	100	20.0	2

Speeds and Feeds for Side Milling for Slot Milling reduce values by 40%-70%, use air coolant or high mist retardant liquid cooling

Cast Iron, Nodular Cast Iron	Carbon Steel, Alloy Steel -750N/Mm2	Carbon Steel, Alloy Steel 30HRC	Pre Hardened Quenched and Tempered Steel 40HRC	Stainless Steel	Pre Hardened Quenched and Tempered Steel 50HRC
RPM 6000 Feed 650 mm/min	RPM 6000 Feed 650 mm/min	RPM 4800 Feed 475 mm/min	RPM 4000 Feed 350 mm/min	RPM 2750 Feed 225 mm/min	RPM 3200 Feed 220 mm/min
