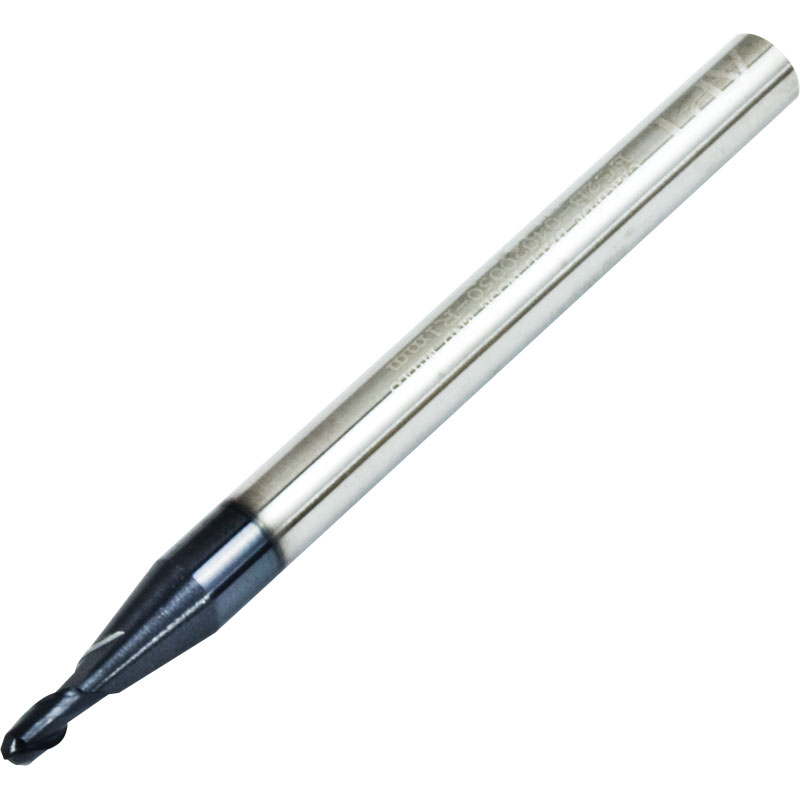

Economy Series Ball Nose Carbide End Mill 2mm Diameter 2 Flute TiAlN Coated

(Exc. 20% VAT)(£3.12 Inc. VAT)

Model: EC2B-04020050
Brand: APT Carbide End Mills

Shipped Weight: 25 g

Availability:

In stock, immediate despatch

APT Carbide End Mills

Carbide End Mills APT Brand

EC2B-04020050 Economy Series Ball Nose Carbide End Mill 2.0mm Diameter 4mm Plain Shank 50mm Long 4mm Flute Length 2 Flutes TiAlN Coated

Suitable for Steel, Cast Iron and General Use on Materials up to 45HRC

Dimensions for EC2B-04020050 (mm)

Diameter	Radius	Shank Dia	Length	Flute Length	No of Flutes
2.0	1.0	4.0	50	4.0	2

Speeds and Feeds for Side Milling for Slot Milling reduce values by 40%-70%, use air coolant or high mist retardant liquid cooling

Cast Iron, Nodular Cast Iron	Carbon Steel, Alloy Steel -750N/Mm2	Carbon Steel, Alloy Steel 30HRC	Pre Hardened Quenched and Tempered Steel 40HRC	Stainless Steel	Pre Hardened Quenched and Tempered Steel 50HRC
RPM 24000 Feed 900 mm/min	RPM 24000 Feed 900 mm/min	RPM 19000 Feed 760 mm/min	RPM 16000 Feed 400 mm/min	RPM 11150 Feed 230 mm/min	RPM 13000 Feed 275 mm/min
