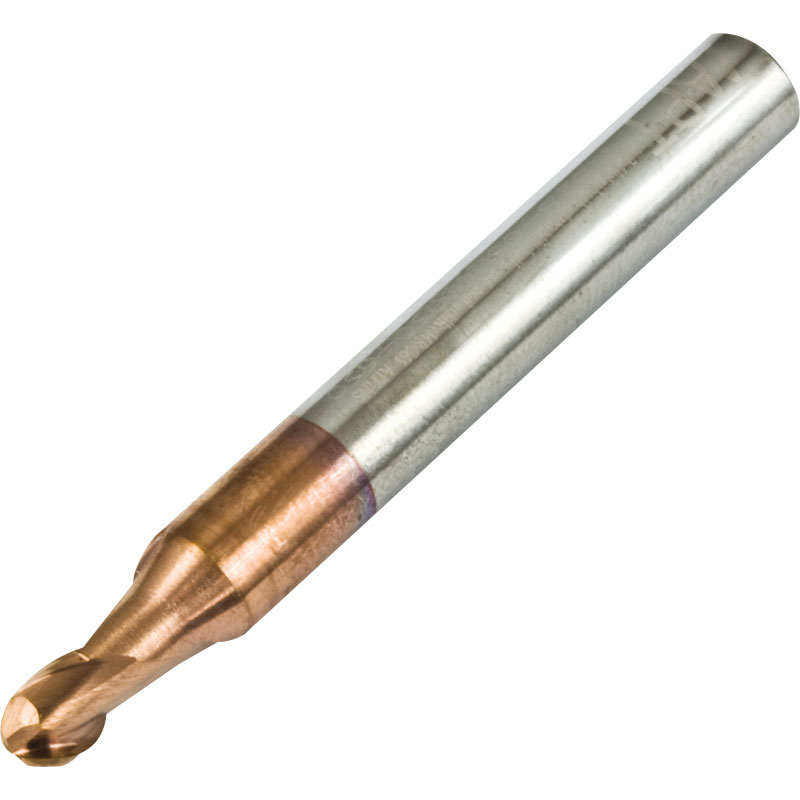

High Strength High Hardness 2 Flute Carbide Ball Nose End Mill 5mm Diameter AlTiNS Coated 65HRC

(Exc. 20% VAT)(£23.52 Inc. VAT)

Model: HS2B-06050050-650
Brand: APT Carbide End Mills

Shipped Weight: 55g

Availability:

In stock, immediate despatch

APT Carbide End Mills

Carbide End Mills APT Brand

High Strength High Hardness 2 Flute Carbide Ball Nose End Mill 5mm Diameter 6mm Plain Shank 50mm Long 5mm Flute Length AlTiNS Coated

Suitable for materials up to 65-68HRC, performs well on Hardened Steel, Mould Tool and Die Steel can be used on 316 Stainless

Dimensions for HS2B-06050050-650 (mm)

Dia	Shank Dia	Flute Length	Effective Length	Length
5	6	5	10	50

Speeds and Feeds for Side Milling for Slot Milling reduce values

Use air cooling or minimum oil mist cooling

Pre Hardened, Hardened Steel 55HRC	Hardened Steel 60HRC	Hardened Steel 65HRC
RPM 12500 Feed 2060 mm/min	RPM 11000 Feed 1815 mm/min	RPM 6350 Feed 630 mm/min
