8mm Diameter Fine Pitch Ripper 3 Flute HSS High Speed Steel 8% Cobalt TiAlN Coated

8mm Diameter Fine Pitch Ripper 3 Flute HSS High Speed Steel 8% Cobalt TiAlN Coated
Zoom  Zoom
Our Price:  £11.60
List Price:  £17.40
Saving Of:  £5.80 (33%)
(Exc. 20% VAT)(£13.92 Inc. VAT)

Model:  GR3-10080069
Brand:  APT Tools

Shipped Weight:  55 g


In stock, immediate despatch

In stock, immediate despatch

APT Tools

Tools for Indexable Inserts

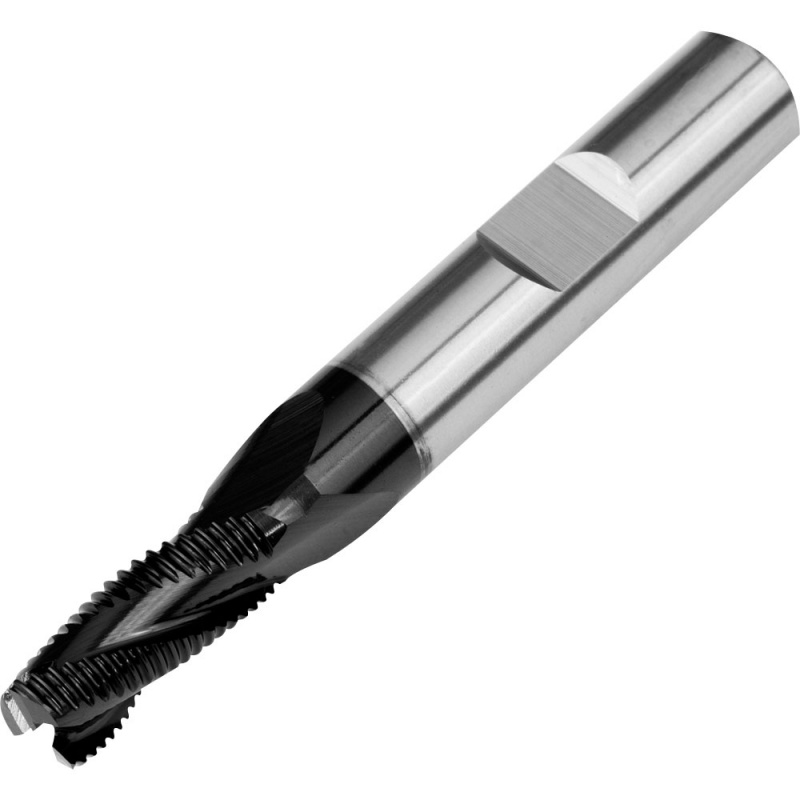

8mm Diameter 3 Flute Fine Pitch Ripper, HSS High Speed Steel 8% Cobalt TiAlN Coated.

10mm Shank Diameter, 19mm Flute Length, 69mm Overall Length.

Centre Cutting with Flatted Weldon Shank. These Milling Cutters, End Mills are Made using High Quality High Speed Steel with TiAlN Coating.

Suitable for Carbon, Alloy and Tool Steel up to 40HRC. Can also be used on Aluminium and Copper Alloys but consider un-coated cutters for non-ferrous materials.

Dimensions for GR3-10080069 (mm)
Diameter Shank Dia Length Flute Length No of Flutes
8.0 10.0 69 19.0 3
Recommended Speeds and Feeds for Side Milling.
Plain Carbon Steel <500N/mm2 Carbon Steel, Alloy Steel 20HRC <800N/mm2 Alloy Steel, Tool Steel 30HRC <1000N/mm2 Alloy Steel, Tool Steel 40HRC <1300N/mm2 Aluminium & Aluminium Alloys
RPM 1950 Feed 145 mm/min RPM 1550 Feed 105 mm/min RPM 1250 Feed 90 mm/min RPM 800 Feed 50 mm/min RPM 4350 Feed 320 mm/min
For slide milling, if depth of cut is more that 1.5D then reduce the recommended feed rate, start with 75% of the above values then increase to the above values to find the ideal parameters for your setup ideally the max run out should max <0.010mm with the maximum rigidity possible.

If the machine can't make the RPM then try the following Vf=fz*n*z (n=actual RPM of the machine)
