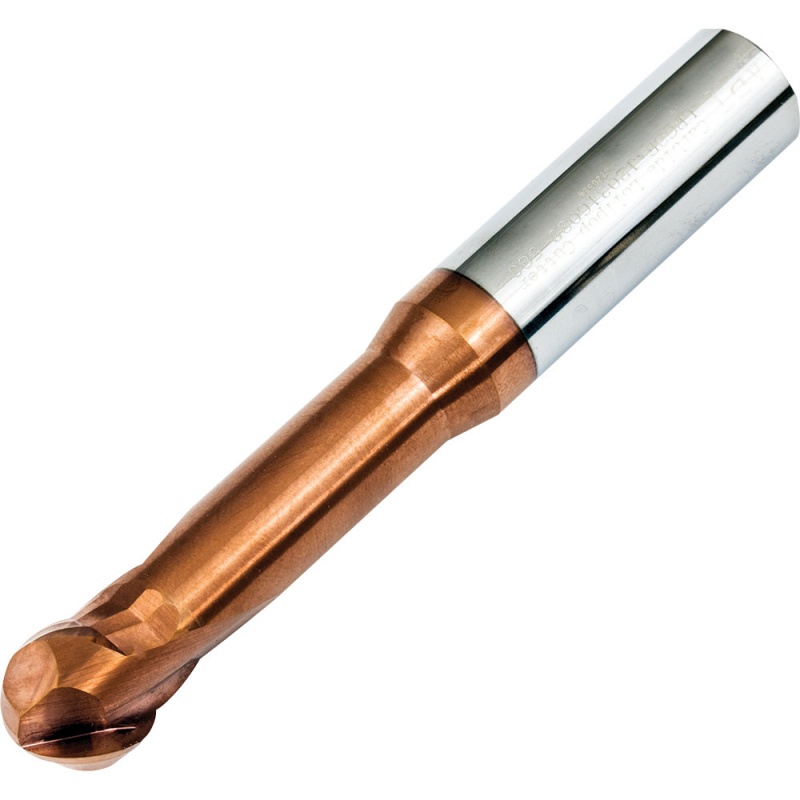

12mm Diameter 6mm Radius Lollipop Cutter 2 Flute Undercutting End Mill 83mm Long 58HRC

12mm Diameter 6mm Radius Lollipop Cutter 2 Flute Undercutting End Mill 83mm Long 58HRC
Zoom  Zoom
Our Price:  £54.00
List Price:  £81.00
Saving Of:  £27.00 (33%)
(Exc. 20% VAT)(£64.80 Inc. VAT)

Model:  LPC2F-120316083-580
Brand:  APT Carbide End Mills

Shipped Weight:  121 g

Availability:

Only 6 left in stock - order soon

Only 6 left in stock - order soon

APT Carbide End Mills

Carbide End Mills APT Brand


16mm Diameter 6mm Radius Lollipop Cutter, 2 Flute Undercutting End Mill 83mm Long 58HRC AlTiNS Coated.

Ideal for Undercutting, 5 Axis Machining, Deburring, All Directional Spherical Cutting, Contouring, Machine Manifolds and Ports, Milling of Thin Walled Parts and other complex machining operations.

Suitable for materials up to 55-58HRC, performs well on Cast Iron, Copper, Mould Tool and Die Steel, 304 Stainless.

Dimensions for LPC2F-120316083-580 (mm)
Diameter (D) Shank Diameter (d) Neck Diameter (DN) Flute Length (L2) Reach (L1) Overall Length (L)
12 12 9.6 11.4 31.6 83



General Cutting parameters, use appropriate cooling.
Material Hardness HB Cutting Speed VC: m/min Application Choice
Non alloyed steel 0-0.45% C 150-250 160-280 (240) Good
Low alloyed steel 250-300 180-240 (220) Good
High alloyed steel 200 140-220 (180) Good
Corrosion resistant steel 200 100-200 (140) Good
Stainless - Ferritic 200 120-200 (160) Good
Stainless - Austenitic 180 100-180 (140) Good
Stainless - Martensitic 330 70-140 (120) Good
Grey cast iron 180-260 180-260 (220) Good
Malleable / Tempered iron 130-230 160-220 (190) Good
Aluminium Alloys 130-230 200-500 (350) OK
Copper, Bronze, Brass 130-230 150-400 (250) Good
Iron Based Hi-temp Alloys 200-280 HB 200-280 30-50 (40) OK
Nickel or Cobalt Based 250 HB 250 15-30 (20) OK
Nickel or Cobalt Based 30-58 HRC 350 15-25 (20) OK
Titanium Alloys 350 60-120 (90) Good
Hardened Steel 40-50HRC 100-180 (140) OK
