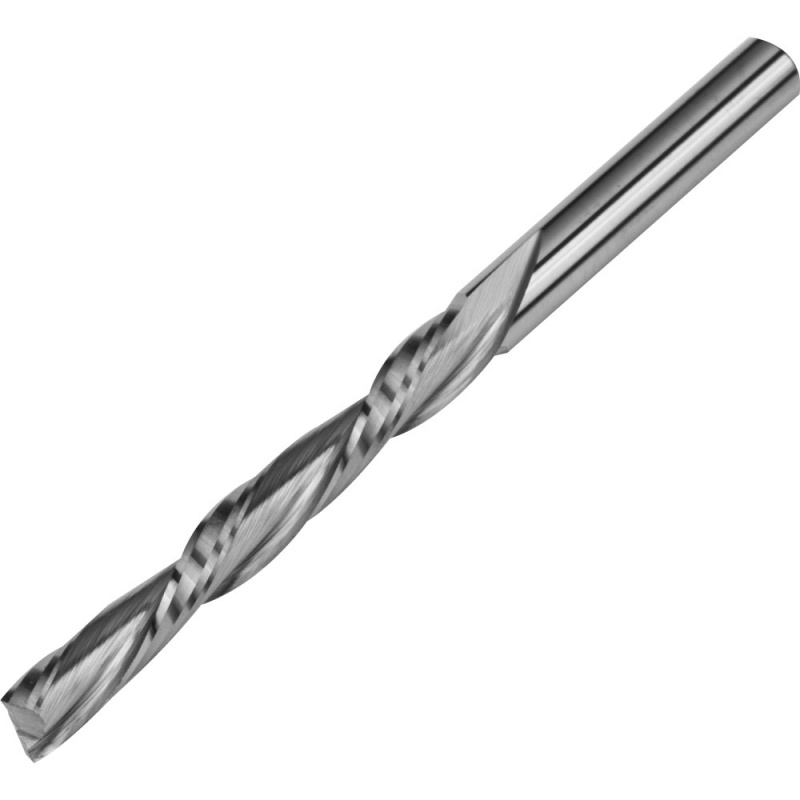

10mm Diameter 2 Flute Down Cut Carbide Router - Slot Drill for Wood, MDF etc. 35mm Flute Length

10mm Diameter 2 Flute Down Cut Carbide Router - Slot Drill for Wood, MDF etc. 35mm Flute Length
Zoom  Zoom
Our Price:  £36.00
List Price:  £54.00
Saving Of:  £18.00 (33%)
(Exc. 20% VAT)(£43.20 Inc. VAT)

Model:  EDC2-10103575
Brand:  APT Carbide End Mills

Shipped Weight:  75 g

Availability:

Only 2 left in stock - order soon

Only 2 left in stock - order soon

APT Carbide End Mills

Carbide End Mills APT Brand


10mm Diameter 2 Flute Down Cut Carbide Router - Slot Drill. 35mm Length of Cut, Overall Length 75mm, Shank Diameter 10mm.

For use on Soft and Flexible Materials including MDF, Hardwood, Softwood, Laminate Board, Plywood Particle Board and other Sheeting.

Downward Spiral Plunge cutting for elimination of burrs on the work surface by pushing the chips downwards.

Use lower feed rate when depth of cut increases, if possible use suitable work holding to reduce lifting of the work piece.

Clearance of cutting chips may be required to prevent chip jamming.

Choose cutters with the shortest flute length that is suitable for the job with as little overhang as possible.

Made from wear resistant Uncoated Carbide for increased tool life.

Dimensions for EDC2-10103575
Cutting DiameterLength of CutOverall LengthShank Diameter
10mm35mm75mm10mm
Speeds and Feeds, based on a max depth of 1 x diameter with high accuracy spindle and collets with optimum stability of spindle and workpiece holding, reduce feed rate for suboptimal conditions.
When cutting more than 1 x diameter reduce feed rate. For guidance only if vibration is produced try lowering the feed rate if not successful try raising feed very slowly, if no vibration is present increased feed rate may be possible.
HardwoodLaminate
RPM 18000 Feed 17000 mm/minRPM 18000 Feed 17000 mm/min
Particle Board MDFPlywoodSolid Surface
RPM 18000 Feed 21000 mm/minRPM 18000 Feed 18000 mm/minRPM 18000 Feed 9500 mm/min
