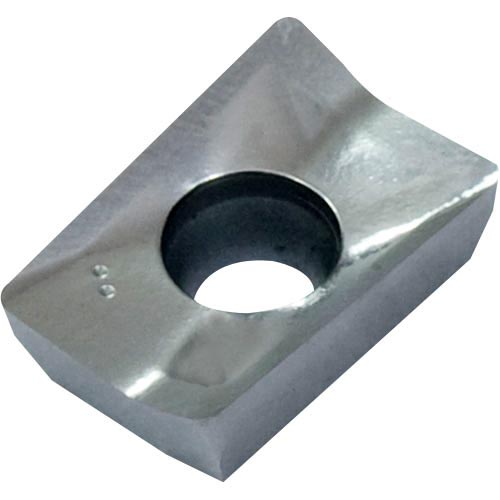

APHT 1003PDFRAL AK15 Carbide Inserts for Milling Ground and Polished for Aluminium APT

APHT 1003PDFRAL AK15 Carbide Inserts for Milling Ground and Polished for Aluminium APT
Zoom  Zoom
Our Price:  £9.27
List Price:  £13.91
Saving Of:  £4.64 (33%)
(Exc. 20% VAT)(£11.12 Inc. VAT)

Model:  APHT1003PDFRALAK15
Brand:  APT Carbide

Shipped Weight:  5g

Availability:

Special order, 14-19 days

Special order, 14-19 days

APT Carbide

Carbide Inserts APT Brand utilising modern Base Grades, MT-CVD & PVD Coatings and proven Chip Geometries


Carbide Inserts for Milling Grade AK15 (K15 Uncoated Micro–Grain Carbide – Ground with Polished Surface) Main application – Aluminium, Copper Alloys, Plastics and Abrasive Materials, extended application – finishing Stainless

Geometry AL for finishing to medium machining of Aluminium & non–ferrous metals

Dimensions for APHT 1003PDFRAL AK15 (mm)
Cutting Edge LengthInscribed Circle or Width
Thickness
Hole Dia
Corner Radius
Side Clearance
9.52
6.35
3.18
2.88
0.5
11°
Recommended Cutting Conditions - Speeds and Feeds for Milling with APHT 1003PDFRAL AK15
Material
Grade - Range (ISO)
Cutting Speed m/min
Feed Per Tooth
Depth of Cut
Aluminium Wrought Alloys 60-100 HB
AK15 (N10-N20)
200-2000
0.03-0.101.0-6.0
Aluminium Castings Si<12% 80-90 HB
AK15 (N10-N20)
200-2000
0.03-0.10
1.0-5.0
Aluminium Alloys Si>12% 130 HB
AK15 (N10-N20)
200-1000
0.03-0.10
1.0-2.0
Brass, Red Bronze 90 HB
AK15 (N10-N20)
250-1000
0.03-0.10
1.0-5.0
Bronze 100 HB
AK15 (N10-N20)
150-400
0.03-0.10
1.0-4.0
Plastics, Hard Rubber
AK15 (N10-N20)
80-2200.03-0.10
1.0-3.0
