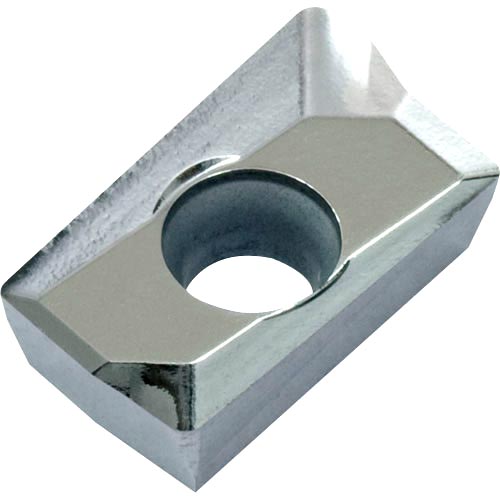

APHT 1604PDFRAL AK15 Carbide Inserts for Milling Ground and Polished for Aluminium APT

Our Price:	£9.15
List Price:	~~£13.73~~
Saving Of:	£4.58 (33%)

(Exc. 20% VAT)(£10.98 Inc. VAT)

Model: APHT1604PDFRALAK15
Brand: APT Carbide

Shipped Weight: 10g

Availability:

Only 20 left in stock - order soon

APT Carbide

Carbide Inserts APT Brand utilising modern Base Grades, MT-CVD & PVD Coatings and proven Chip Geometries

Product Details
Cutting Data APHT 1604 PDFRAL AK15

New version of this item APKT 1604 PDFR AK10

Carbide Inserts for Milling Grade AK15 (K15 Uncoated Micro–Grain Carbide – Ground with Polished Surface) Main application – Aluminium, Copper Alloys, Plastics and Abrasive Materials, extended application – finishing Stainless

Geometry AL for finishing to medium machining of Aluminium & non–ferrous metals

Dimensions for APHT 1604PDFRAL AK15 (mm)

Cutting Edge Length	Inscribed Circle or Width	Thickness	Hole Dia	Corner Radius	Side Clearance
17.0	9.52	4.76	4.6	0.8	11°

Recommended Cutting Conditions - Speeds and Feeds for Milling with APHT 1604PDFRAL AK15

Material	Grade - Range (ISO)	Cutting Speed m/min	Feed Per Tooth	Depth of Cut
Aluminium Wrought Alloys 60-100 HB	AK15 (N10-N20)	200-2000	0.06-0.25	1.0-15.0
Aluminium Castings Si<12% 80-90 HB	AK15 (N10-N20)	200-2000	0.06-0.20	1.0-10.0
Aluminium Alloys Si>12% 130 HB	AK15 (N10-N20)	200-1000	0.06-0.15	1.0-5.0
Brass, Red Bronze 90 HB	AK15 (N10-N20)	250-1000	0.06-0.25	1.0-10.0
Bronze 100 HB	AK15 (N10-N20)	150-400	0.06-0.20	1.0-5.0
Plastics, Hard Rubber	AK15 (N10-N20)	80-220	0.06-0.15	1.0-5.0
