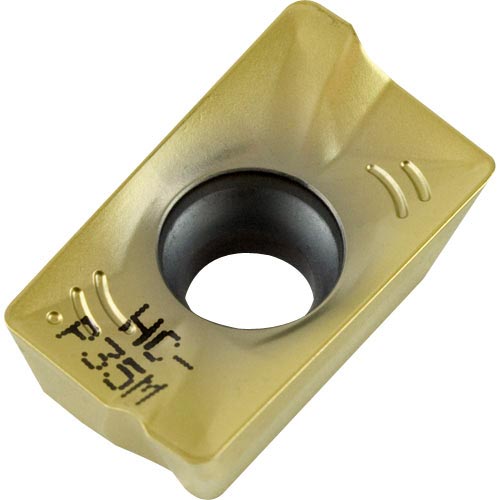

APKT 1604 PDR-S NK135 Carbide Inserts for Milling PVD Coated for General Use APT

APKT 1604 PDR-S NK135 Carbide Inserts for Milling PVD Coated for General Use APT
Zoom  Zoom
Our Price:  £7.02
List Price:  £10.54
Saving Of:  £3.52 (33%)
(Exc. 20% VAT)(£8.42 Inc. VAT)

Model:  APKT1604PDRSNK135
Brand:  APT Carbide

Shipped Weight:  10g

Availability:

In stock, immediate despatch

In stock, immediate despatch

APT Carbide

Carbide Inserts APT Brand utilising modern Base Grades, MT-CVD & PVD Coatings and proven Chip Geometries


Carbide Inserts for Milling PVD Coated Grade NK135 (P35–M35–S15 + PVD TiN (Ti–Al–Si)N Coating) Main application – Carbon & Alloy Steel, extended application – Stainless Steel & Hi–Temp Alloy

 Geometry S for Alloy Steel, Stainless & Hi–Temp Alloy

Dimensions for APKT 1604 PDR-S NK135 (mm)
Cutting Edge Length Inscribed Circle or Width Thickness Hole Dia Corner Radius Side Clearance
16.39 9.52 5.3 4.4 0.8 11°
General Cutting parameters
Material Hardness HB Cutting Speed VC: m/min Depth of Cut ap(mm) Feed f(mm) Application Choice
Non alloyed steel 0-0.45% C 150-250 100-220 1.0-14.0 0.08-0.17 Good
Low alloyed steel 250-300 100-220 1.0-14.0 0.08-0.17 Good
High alloyed steel 200 100-220 1.0-14.0 0.08-0.17 Good
Corrosion resistant steel 200 100-220 1.0-14.0 0.08-0.17 Good
Stainless - Ferritic 200 80-160 1.0-8.0 0.08-0.17 OK
Stainless - Austenitic 180 80-160 1.0-8.0 0.08-0.17 OK
Stainless - Martensitic 330 80-160 1.0-8.0 0.08-0.17 OK
Iron Based Hi-temp Alloys 200-280 30-70 1.0-4.0 0.08-0.13 OK
Nickel or Cobalt Based 30-58 HRC - 30-70 1.0-4.0 0.08-0.13 OK
Nickel or Cobalt Based 250 HB 250 30-70 1.0-4.0 0.08-0.13 OK
Pure Titanium - 30-70 1.0-4.0 0.08-0.13 OK
Titanium  Alpha + Beta Alloys - 30-70 1.0-4.0 0.08-0.13 OK
