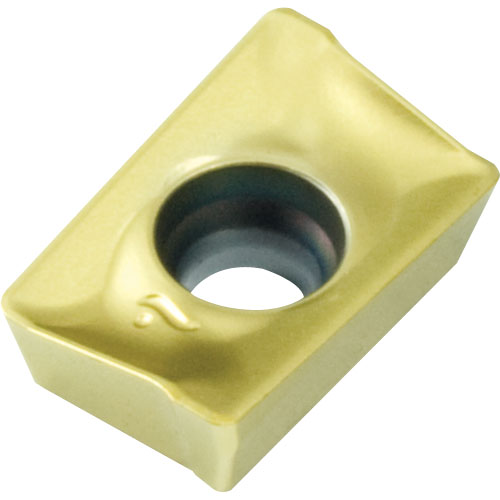

APKT 1003 PDR-H NK135 Carbide Inserts for Milling PVD Coated for General Use APT

APKT 1003 PDR-H NK135 Carbide Inserts for Milling PVD Coated for General Use APT
Zoom  Zoom
Our Price:  £5.47
List Price:  £8.21
Saving Of:  £2.74 (33%)
(Exc. 20% VAT)(£6.56 Inc. VAT)

Model:  APKT1003PDRHNK135
Brand:  APT Carbide

Shipped Weight:  5 g

Availability:

Only 90 left in stock - order soon

Only 90 left in stock - order soon

APT Carbide

Carbide Inserts APT Brand utilising modern Base Grades, MT-CVD & PVD Coatings and proven Chip Geometries


Carbide Inserts for Milling PVD Coated Grade NK135 (P35–M35–S15 + PVD TiN (Ti–Al–Si)N Coating) Main application – Carbon & Alloy Steel, extended application – Stainless Steel & Hi–Temp Alloy

Geometry H for General Use

Geometry H for General Machining of Steel

Dimensions for APKT 1003 PDR-H NK135 (mm)
Cutting Edge LengthInscribed Circle or WidthThicknessHole DiaCorner RadiusSide Clearance
9.86.653.52.80.511°
General Cutting parameters
MaterialHardness HBCutting Speed VC: m/minDepth of Cut ap(mm)Feed f(mm)Application Choice
Non alloyed steel 0-0.45% C150-250100-2201.0-7.00.08-0.15Good
Low alloyed steel250-300100-2201.0-7.00.08-0.15Good
High alloyed steel200100-2201.0-7.00.08-0.15Good
Corrosion resistant steel200100-2201.0-7.00.08-0.15Good
Stainless - Ferritic20080-1601.0-5.00.08-0.15OK
Stainless - Austenitic18080-1601.0-5.00.08-0.15OK
Stainless - Martensitic33080-1601.0-5.00.08-0.15OK
Iron Based Hi-temp Alloys200-28030-701.0-3.00.08-0.13OK
Nickel or Cobalt Based 30-58 HRC-30-701.0-3.00.08-0.13OK
Nickel or Cobalt Based 250 HB25030-701.0-3.00.08-0.13OK
Pure Titanium-30-701.0-3.00.08-0.13OK
Titanium  Alpha + Beta Alloys-30-701.0-3.00.08-0.13OK
