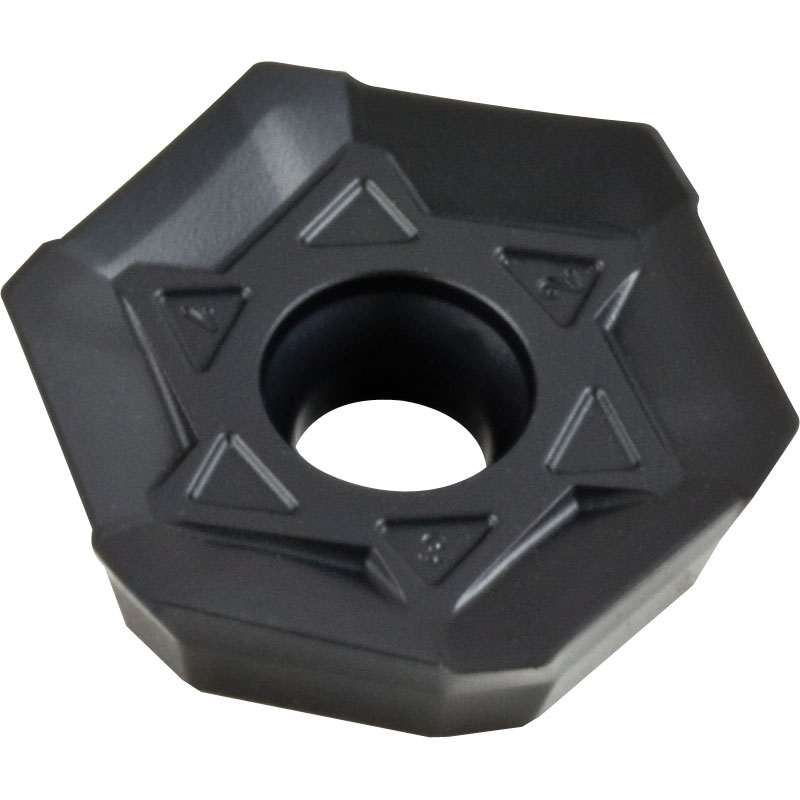

HPKT 0604 AZR-H NK315 Carbide Inserts for Milling CVD Coated for Cast Iron

HPKT 0604 AZR-H NK315 Carbide Inserts for Milling CVD Coated for Cast Iron

Zoom

Zoom

Our Price:	£8.01
List Price:	~~£12.01~~
Saving Of:	£4.00 (33%)

(Exc. 20% VAT)(£9.61 Inc. VAT)

Model: HPKT0604AZR-HNK315
Brand: APT Carbide

Shipped Weight: 18 g

Availability:

Only 50 left in stock - order soon

Only 50 left in stock - order soon

APT Carbide

Carbide Inserts APT Brand utilising modern Base Grades, MT-CVD & PVD Coatings and proven Chip Geometries

Carbide Inserts for Milling CVD Grade NK315, K15 CVD Ti(C,N) + Al2O3 Coating. Main application Cast Iron

Geometry H for medium to roughing applications

Dimensions for HPKT 0604 AZR-H NK315 (mm)

Cutting Edge Length	Inscribed Circle or Width	Thickness	Hole Dia	Corner Radius	Side Clearance
6.1	11.2	4.76	4.4	-	11°

General Cutting parameters

Material	Hardness HB	Cutting Speed VC: m/min	Depth of Cut ap(mm)	Feed f(mm)
Grey cast iron	180	140-350	0.5-4.0	0.1-0.45
Spheroidal cast iron	160	100-250	0.5-4.0	0.1-0.35
Malleable / Tempered iron	130	120-320	0.5-4.0	0.1-0.45
