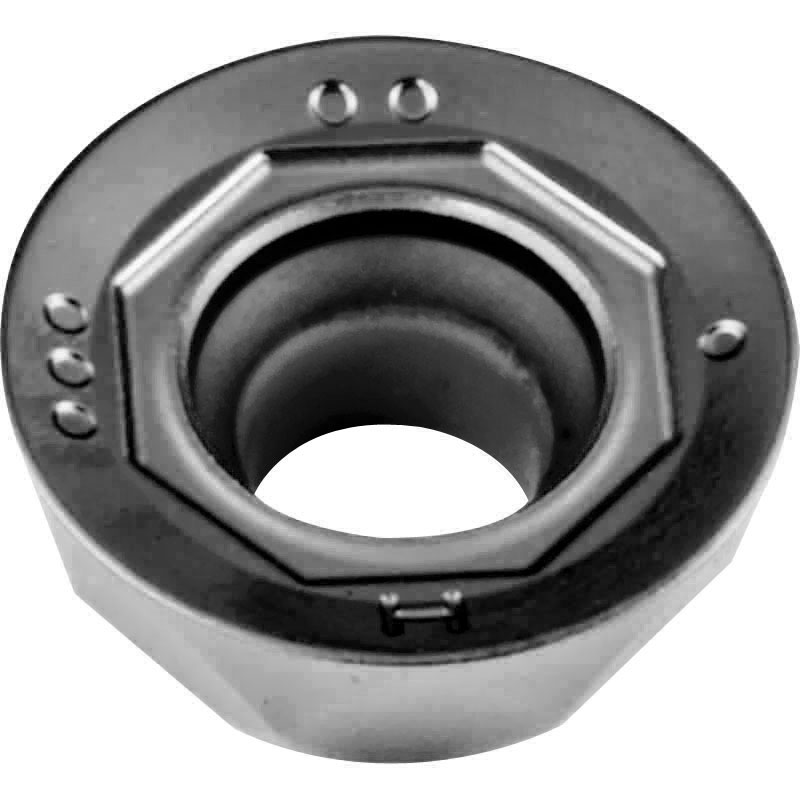

RPMX 10T3MO-H NK315 Carbide Inserts for Milling CVD Coated for Cast Iron

RPMX 10T3MO-H NK315 Carbide Inserts for Milling CVD Coated for Cast Iron
Zoom  Zoom
Our Price:  £6.64
List Price:  £9.97
Saving Of:  £3.33 (33%)
(Exc. 20% VAT)(£7.97 Inc. VAT)

Model:  RPMX10T3MO-HNK315
Brand:  APT Carbide

Shipped Weight:  6 g

Availability:

Special order, 10-15 days

Special order, 10-15 days

APT Carbide

Carbide Inserts APT Brand utilising modern Base Grades, MT-CVD & PVD Coatings and proven Chip Geometries


RPMX 10T3MO-H NK315 Carbide Inserts for Milling CVD Grade NK315, K15 CVD Ti(C,N) + Al2O3 Coating. Main application Cast Iron

Geometry H for medium to roughing applications

Dimensions for RPMX 10T3MO-H NK315 (mm)
Cutting Edge Length Inscribed Circle or Width Thickness Hole Dia Corner Radius Side Clearance
10.0 10.0 3.97 3.4 - 11°
General Cutting parameters
Material Hardness HB Cutting Speed VC: m/min Depth of Cut ap(mm) Feed f(mm)
Grey cast iron 180 140-350 1.0-3.0 0.1-0.45
Spheroidal cast iron 160 100-250 1.0-3.0 0.1-0.40
Malleable / Tempered iron 130 120-320 1.0-3.0 0.1-0.45
