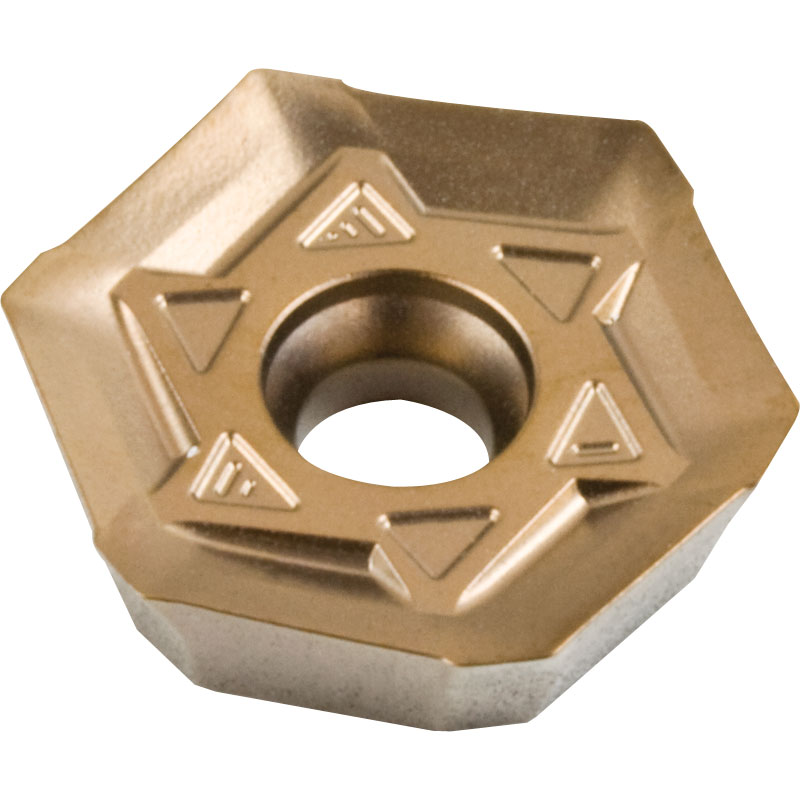

HPKT 0604 AZR-S NK535 Carbide Inserts for Milling Hi-Temp Alloys Inconel Waspaloy Stellite Nimonic

HPKT 0604 AZR-S NK535 Carbide Inserts for Milling Hi-Temp Alloys Inconel Waspaloy Stellite Nimonic
Zoom  Zoom
Our Price:  £9.48
List Price:  £14.21
Saving Of:  £4.73 (33%)
(Exc. 20% VAT)(£11.38 Inc. VAT)

Model:  HPKT0604AZR-SNK535
Brand:  APT Carbide

Shipped Weight:  18g

Availability:

Special order, 10-15 days

Special order, 10-15 days

APT Carbide

Carbide Inserts APT Brand utilising modern Base Grades, MT-CVD & PVD Coatings and proven Chip Geometries


Carbide Inserts for Milling CVD Coated Grade NK535 (S25–M35 + New CVD Coating) Main application Hi–Temp Alloys, Inconel, Waspaloy, Nimonic ect extended application – Stainless

Geometry S for Alloy Steel, Stainless & Hi–Temp Alloy

Dimensions for HPKT 0604 AZR-S NK535 (mm)
Cutting Edge Length Inscribed Circle or Width Thickness Hole Dia Corner Radius Side Clearance
6.1 11.2 4.76 4.4 - 11°
General Cutting parameters
Material Hardness HB Cutting Speed VC: m/min Depth of Cut ap(mm) Feed f(mm)
Stainless - Ferritic 200 220-350 1.0-4.0 0.1-0.30
Stainless - Austenitic 180 150-250 1.0-4.0 0.1-0.30
Stainless - Duplex 230-260 60-140 1.0-4.0 0.1-0.25
Stainless - Martensitic 330 60-180 1.0-4.0 0.1-0.25
Iron Based Hi-temp Alloys 200-280 20-30 1.0-3.5 0.05-0.25
Nickel or Cobalt Based 30-58 HRC - 20-30 1.0-3.5 0.05-0.25
Nickel or Cobalt Based 250 HB 250 20-30 1.0-3.0 0.05-0.25
Pure Titanium - 30-70 1.0-4.0 0.05-0.30
Titanium  Alpha + Beta Alloys - 30-70 1.0-4.0 0.05-0.30
