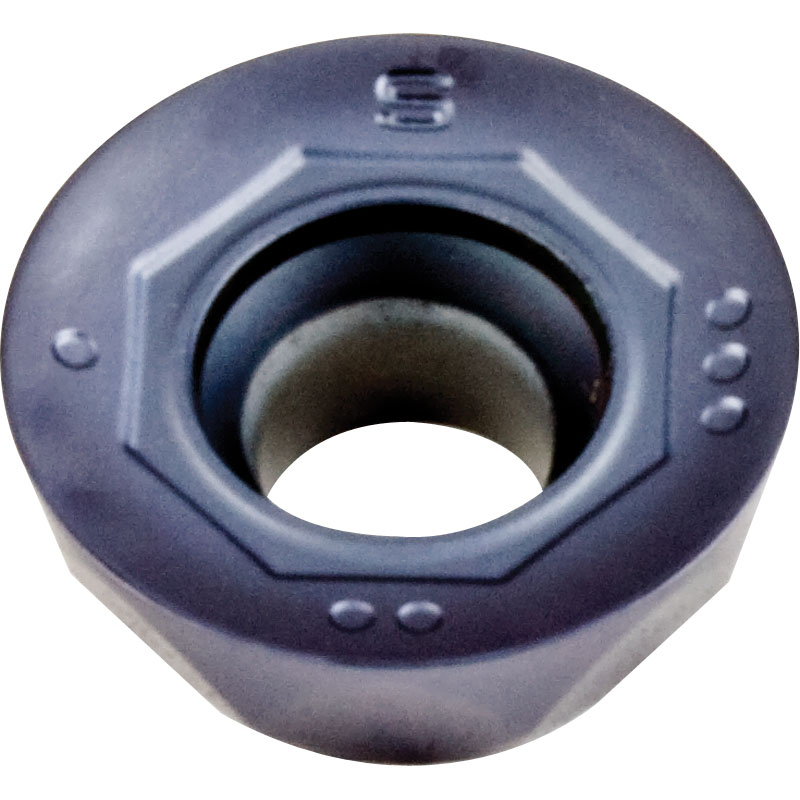

RPMX 10T3MO-S NK235 Carbide Inserts for Milling PVD Coated for Stainless

RPMX 10T3MO-S NK235 Carbide Inserts for Milling PVD Coated for Stainless
Zoom  Zoom
Our Price:  £6.64
List Price:  £9.97
Saving Of:  £3.33 (33%)
(Exc. 20% VAT)(£7.97 Inc. VAT)

Model:  RPMX10T3MO-SNK235
Brand:  APT Carbide

Shipped Weight:  6 g

Availability:

Only 90 left in stock - order soon

Only 90 left in stock - order soon

APT Carbide

Carbide Inserts APT Brand utilising modern Base Grades, MT-CVD & PVD Coatings and proven Chip Geometries


RPMX 10T3MO-S NK235 Carbide Inserts for Milling PVD Coated Grade NK235 (P40, M35,S15 + PVD TiAlN Coating) Main application Stainless & Alloyed Steel, extended application High Temp Alloy

Dimensions for RPMX 10T3MO-S NK235 (mm)
Diameter Inscribed Circle or Width Thickness Hole Dia Corner Radius Side Clearance
10.0 10.0 3.97 3.4 - 11°
General Cutting parameters
Material Hardness HB Cutting Speed VC: m/min Depth of Cut ap(mm) Feed f(mm)
Non alloyed steel 0-0.45% C 150-250 90-260 0.5-3.0 0.1-0.60
Low alloyed steel 250-300 70-220 0.5-3.0 0.1-0.60
High alloyed steel 200 70-220 0.5-3.0 0.1-0.50
Corrosion resistant steel 200 70-190 0.5-3.0 0.1-0.40
Stainless - Ferritic 200 60-250 0.5-3.0 0.1-0.45
Stainless - Austenitic 180 60-250 0.5-3.0 0.1-0.45
Stainless - Duplex 230-260 60-130 0.5-2.5 0.1-0.40
Stainless - Martensitic 330 60-250 0.5-2.5 0.1-0.40
