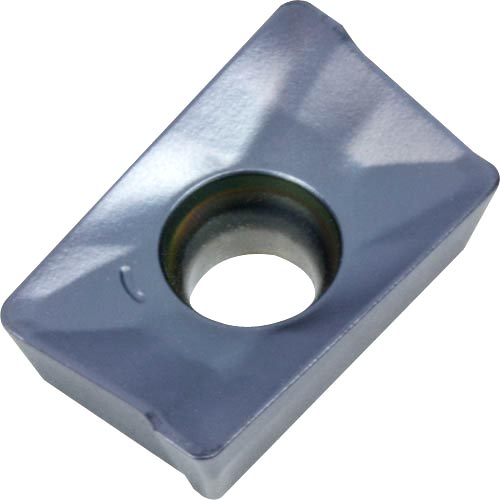

APKT 1003 PDR-S NK235 Carbide Inserts for Milling PVD Coated for Stainless APT

APKT 1003 PDR-S NK235 Carbide Inserts for Milling PVD Coated for Stainless APT
Zoom  Zoom
Our Price:  £5.32
List Price:  £7.98
Saving Of:  £2.66 (33%)
(Exc. 20% VAT)(£6.38 Inc. VAT)

Model:  APKT1003PDRSNK235
Brand:  APT Carbide

Shipped Weight:  5 g

Availability:

In stock, immediate despatch

In stock, immediate despatch

APT Carbide

Carbide Inserts APT Brand utilising modern Base Grades, MT-CVD & PVD Coatings and proven Chip Geometries


Carbide Inserts for Milling PVD Coated Grade NK235 (P40–M35–S15 + PVD TiAlN Coating) Main application – Stainless & Hi–Temp Alloy, extended application – Alloy Steel

Geometry S for Alloy Steel, Stainless & Hi–Temp Alloy

Dimensions for APKT 1003 PDR-S NK235 (mm)
Cutting Edge Length Inscribed Circle or Width Thickness Hole Dia Corner Radius Side Clearance
9.8 6.65 3.5 2.8 0.5 11°
General Cutting parameters
Material Hardness HB Cutting Speed VC: m/min Depth of Cut ap(mm) Feed f(mm) Application Choice
Non alloyed steel 0-0.45% C 150-250 70-180 1.0-8.0 0.05-0.13 OK
Low alloyed steel 250-300 70-180 1.0-8.0 0.05-0.13 OK
High alloyed steel 200 70-180 1.0-8.0 0.05-0.13 OK
Corrosion resistant steel 200 70-180 1.0-8.0 0.05-0.13 OK
Stainless - Ferritic 200 50-130 1.0-6.5 0.05-0.13 Good
Stainless - Austenitic 180 50-130 1.0-6.5 0.05-0.13 Good
Stainless - Martensitic 330 50-130 1.0-6.5 0.05-0.13 Good
Iron Based Hi-temp Alloys 200-280 20-60 1.0-3.0 0.05-0.10 OK
Nickel or Cobalt Based 30-58 HRC - 20-60 1.0-3.0 0.05-0.10 OK
Nickel or Cobalt Based 250 HB 250 20-60 1.0-3.0 0.05-0.10 OK
Pure Titanium - 20-60 1.0-3.0 0.05-0.10 OK
Titanium  Alpha + Beta Alloys - 20-60 1.0-3.0 0.05-0.10 OK
