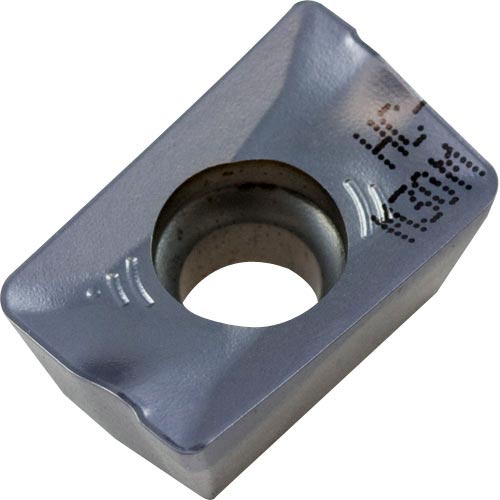

ADKT 1505 PDR-S NK235 Carbide Inserts for Milling PVD Coated for Stainless APT

ADKT 1505 PDR-S NK235 Carbide Inserts for Milling PVD Coated for Stainless APT
Zoom  Zoom
Our Price:  £6.98
List Price:  £10.48
Saving Of:  £3.50 (33%)
(Exc. 20% VAT)(£8.38 Inc. VAT)

Model:  ADKT1505PDRSNK235
Brand:  APT Carbide

Shipped Weight:  10g

Availability:

In stock, immediate despatch

In stock, immediate despatch

APT Carbide

Carbide Inserts APT Brand utilising modern Base Grades, MT-CVD & PVD Coatings and proven Chip Geometries


Carbide Inserts for Milling PVD Coated Grade NK235 (P40–M35–S15 + PVD TiAlN Coating) Main application – Stainless & Hi–Temp Alloy, extended application – Alloy Steel

Geometry S for Alloy Steel, Stainless & Hi–Temp Alloy

Dimensions for ADKT 1505 PDR-S NK235 (mm)
Cutting Edge LengthInscribed Circle or Width
Thickness
Hole Dia
Corner Radius
Side Clearance
15.2
9.57
5.65
4.4
0.8
15°
Recommended Cutting Conditions - Speeds and Feeds for Milling with ADKT 1505 PDR-S NK235
Material
Grade - Range (ISO)
Cutting Speed m/min
Feed per Tooth
Depth of Cut
Plain Carbon Steel 125 HB
NK235 (P30-P45)
90-180
0.08-0.17
1.0-13.0
Plain Carbon Steel 150-300 HB
NK235 (P30-P45)
90-180
0.08-0.17
1.0-10.0
Low Alloyed Steel 180-300 HB
NK235 (P30-P45)
70-160
0.08-0.17
1.0-10.0
High Alloyed & Tool Steel 200-350 HB
NK235 (P30-P45)
70-140
0.08-0.15
1.0-8.0
Corrosion Resistant Steel 200-325 HB
NK235 (P35-P45)
60-140
0.08-0.15
1.0-5.0
Stainless Steel 180-200 HB
NK235 (M25-M40)
60-140
0.08-0.15
1.0-8.0
Duplex Stainless 230-260 HB
NK235 (M25-M40)
60-140
0.08-0.17
1.0-5.0
Hardened Stainless 330 HB
NK235 (M25-M40)
60-140
0.08-0.17
1.0-4.0
Iron Based Hi-temp Alloys
NK235 (S20-S30)
20-60
0.08-0.15
1.0-4.0
Nickel Based Hi-temp Alloys
NK235 (S20-S30)
20-30
0.08-0.12
1.0-3.0
Pure Titanium
NK235 (S20-S30)
40-70
0.08-0.15
1.0-4.0
Titanium  Alpha + Beta Alloys
NK235 (S20-S30)
20-40
0.08-0.12
1.0-3.0
