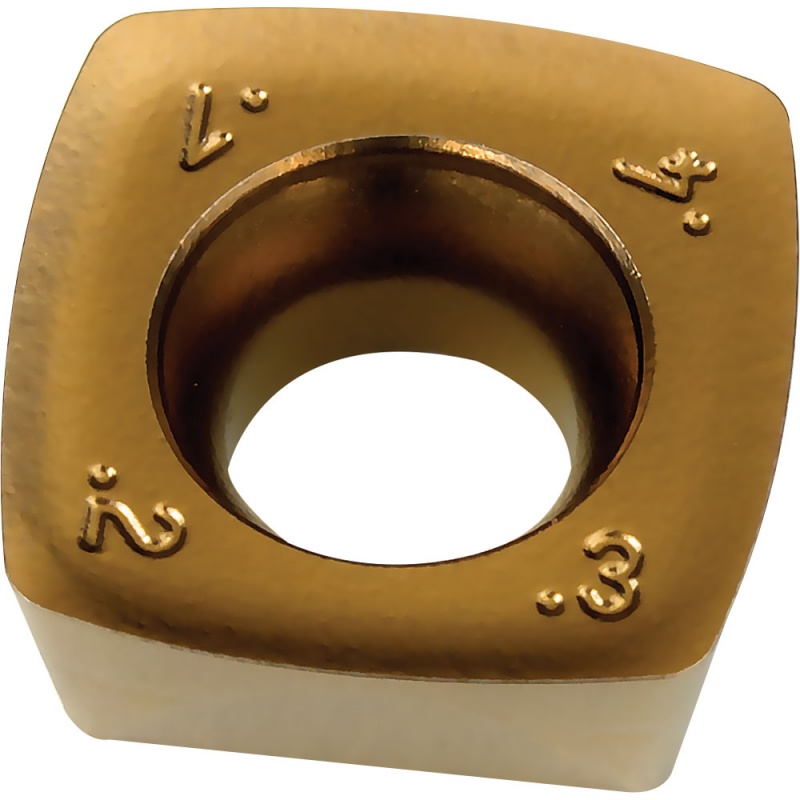

XDLT 10T308SR-S NK535 Carbide Inserts for High Feed Milling of Stainless

XDLT 10T308SR-S NK535 Carbide Inserts for High Feed Milling of Stainless

Zoom

Zoom

Our Price:	£7.78
List Price:	~~£11.67~~
Saving Of:	£3.89 (33%)

(Exc. 20% VAT)(£9.34 Inc. VAT)

Model: XDLT10T308SR-SNK535
Brand: APT Carbide

Shipped Weight: 8 g

Availability:

Only 50 left in stock - order soon

Only 50 left in stock - order soon

APT Carbide

Carbide Inserts APT Brand utilising modern Base Grades, MT-CVD & PVD Coatings and proven Chip Geometries

XDLT 10T308SR-S NK535 Carbide Inserts for High Feed Milling of Stainless CVD Coated Grade NK535, S25, M35 with High Quality CVD Coating.

Main application all types of Stainless Steel.

Geometry S for Stainless.

These inserts provide very high table feed at low cutting depth.

Dimensions for XDLT 10T308SR-S NK535 (mm)

Inscribed Circle or Width	Thickness	Hole Dia	Corner Radius	Side Clearance
10	3.97	4.4	0.8	9°

General Cutting parameters, Speeds and Feeds.

Material	Hardness HB	Cutting Speed VC: m/min	Depth of Cut ap(mm)	Feed fz(mm)	Application Choice
Stainless - Ferritic	200	60-200	0.1-1.0	0.1-2.4	Good
Stainless - Austenitic	180	60-200	0.1-1.0	0.1-2.4	Good
Stainless - Duplex	230-260	60-140	0.1-1.0	0.1-2.4	Good
Stainless - Martensitic	330	60-180	0.1-1.0	0.1-2.4	Good

Ramping and Helical Interpolation Parameters (mm)

Cutter Diameter	Ramping	Ramping	Helical cutting	Helical cutting	Helical cutting	Helical cutting
Dc	α°	ap max	α°	ap max	Max hole diameter flat bottom	Min hole diameter
25	3.6	1.0	3.1	1.0	48	35
40	1.2	1.0	1.0	1.0	78	65
50	0.9	1.0	0.8	1.0	98	85
63	0.8	1.0	0.7	1.0	124	111
